ASTM Gray Diamond Switchboard

ASTM Gray Diamond Switchboard

    Rhino Switchboard Mats for the “if” in life

    Class 1 Grey Diamond switchboard is an OEM favorite for IEC Switchgear

    Internal arcing faults in switchgear assemblies are generally recognized as being the most destructive, and therefore potentially the most dangerous, to personnel in the vicinity of the equipment

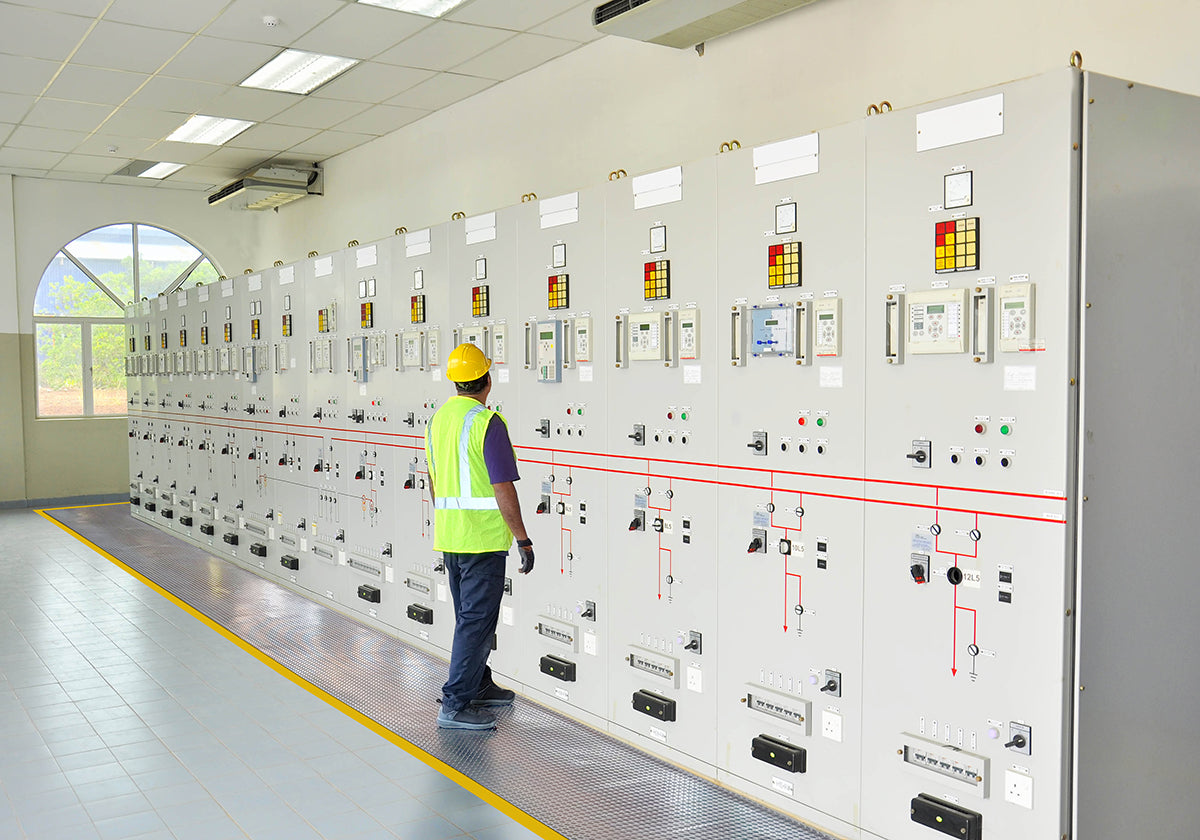

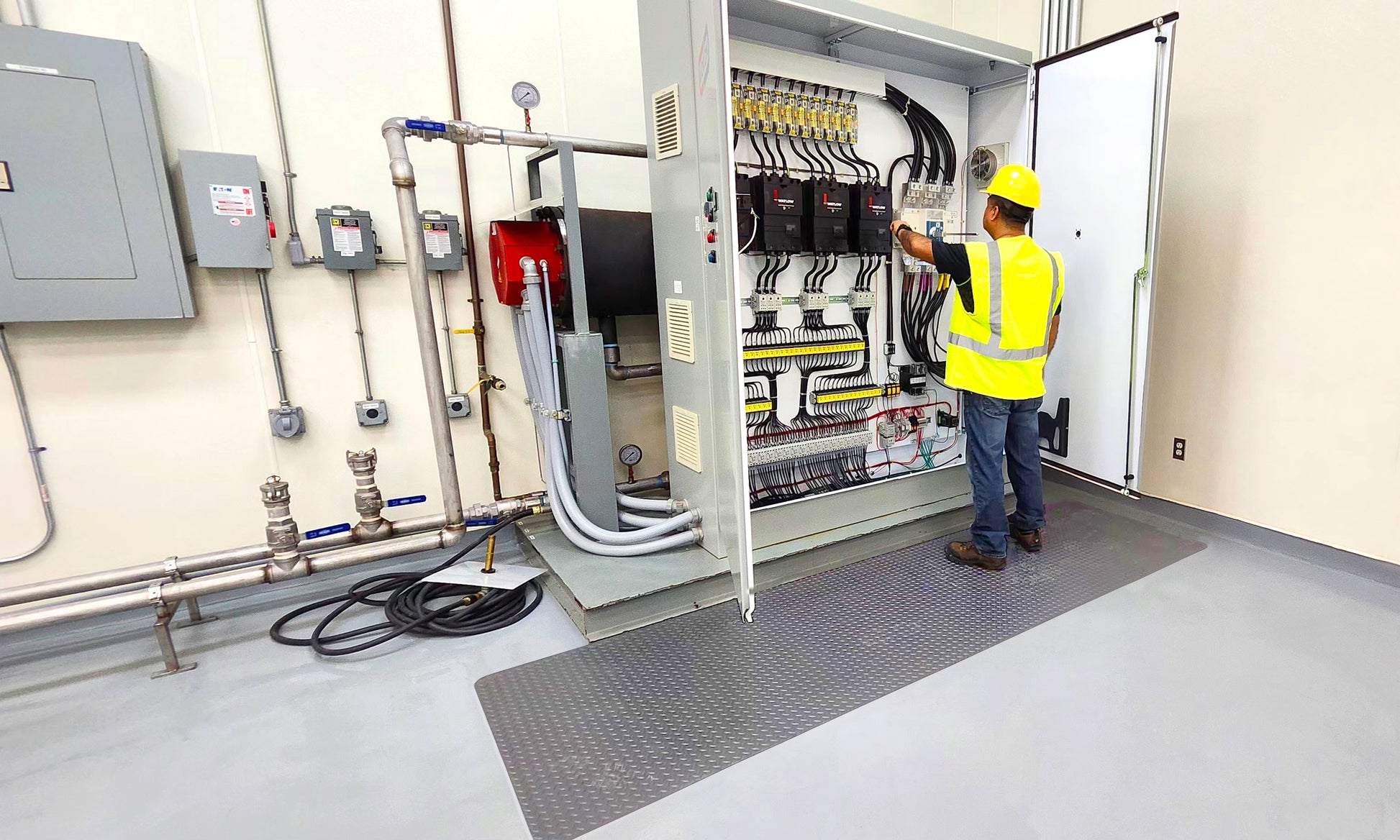

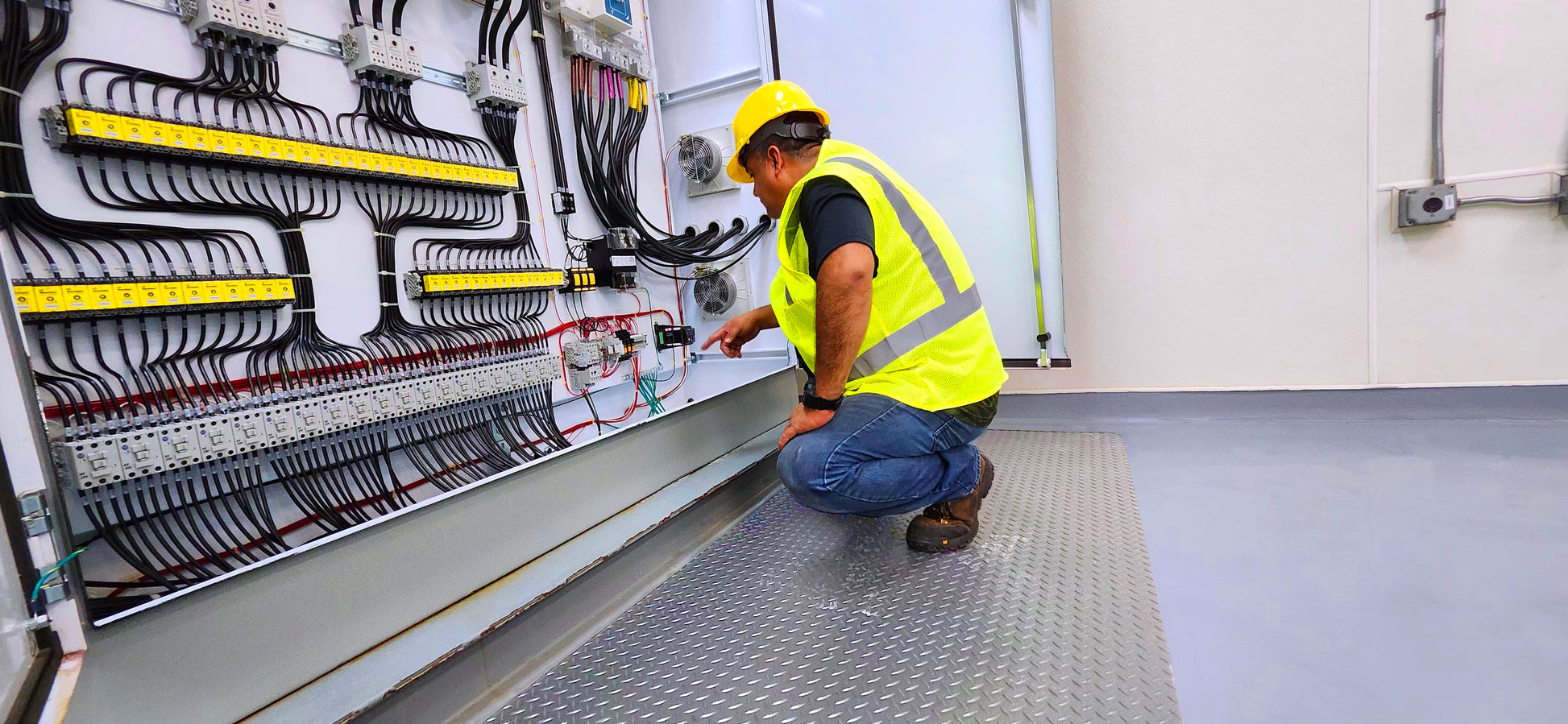

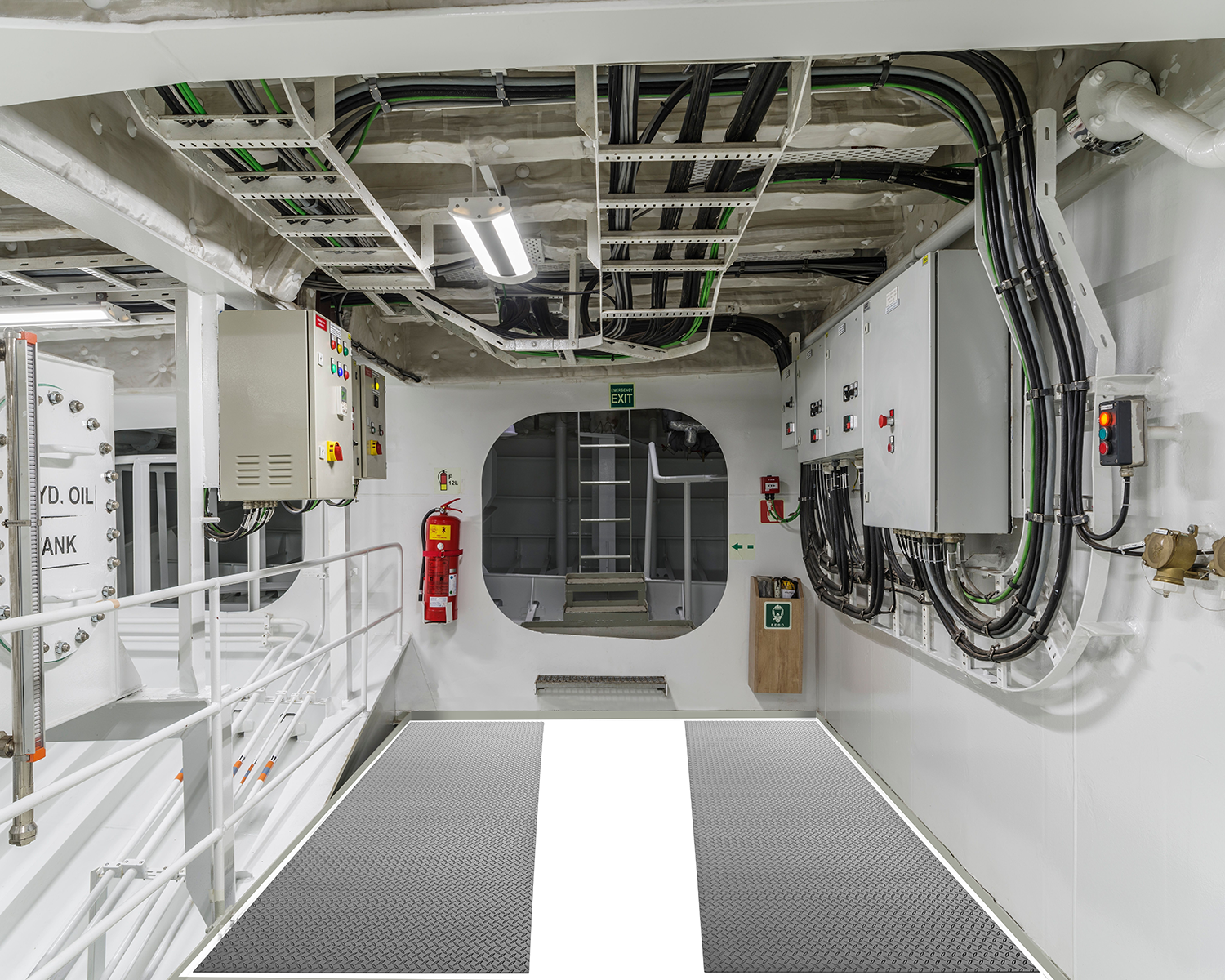

    A specially compounded non-conductive matting designed to provide protective insulation against electric shock. It is ideal for use in and around substations, transformers, control panels, engine rooms, and generators.



    Quality You Can Count On

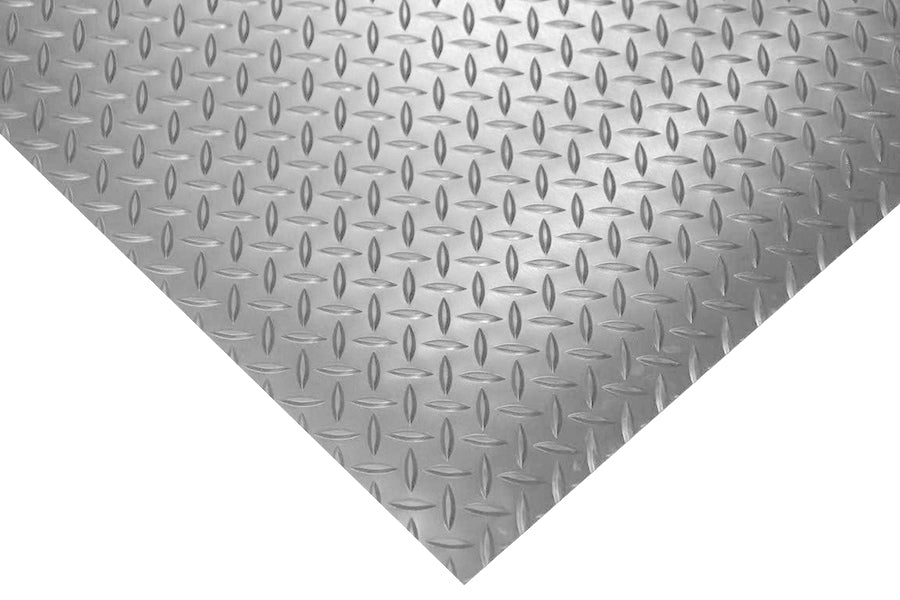

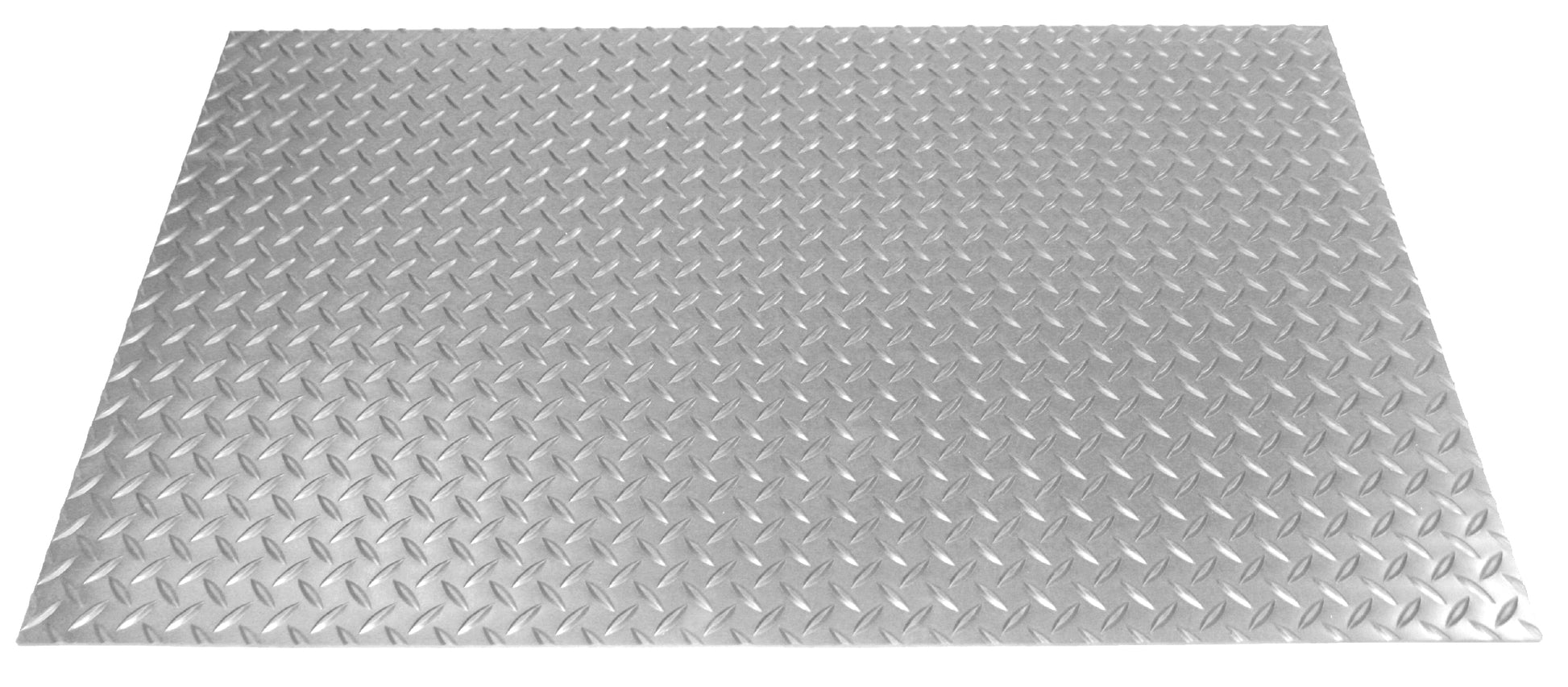

    ASTM TD178/ANSI J6.7. Certification imprinted on the back. Available with the traditional easy-to-sweep diamond surface.



    Delivering On-Time Results and Reliability

    The brand of choice in the oil industry, mass transit, and available at Electrical and Safety Supply Houses worldwide.

    Contact us at 713-228-5543 or email info@rhinomats.com

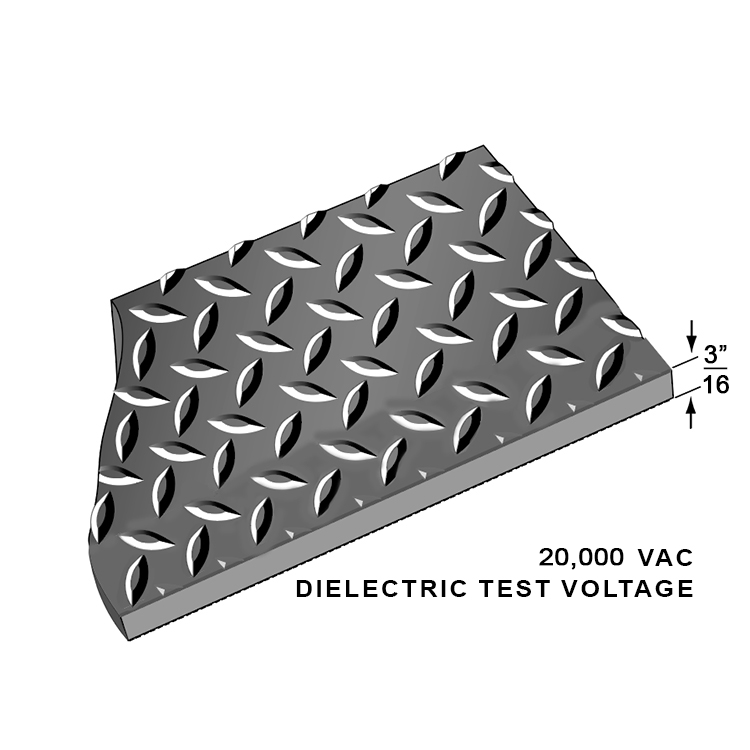

    • Class 2 matting is 3/16” thick and is tested to

      • Dielectric test voltage 20,000 VAC

      • Proof tested over the entire surface at 10,000 VAC

      • Recommended maximum use voltage 7,500 VAC

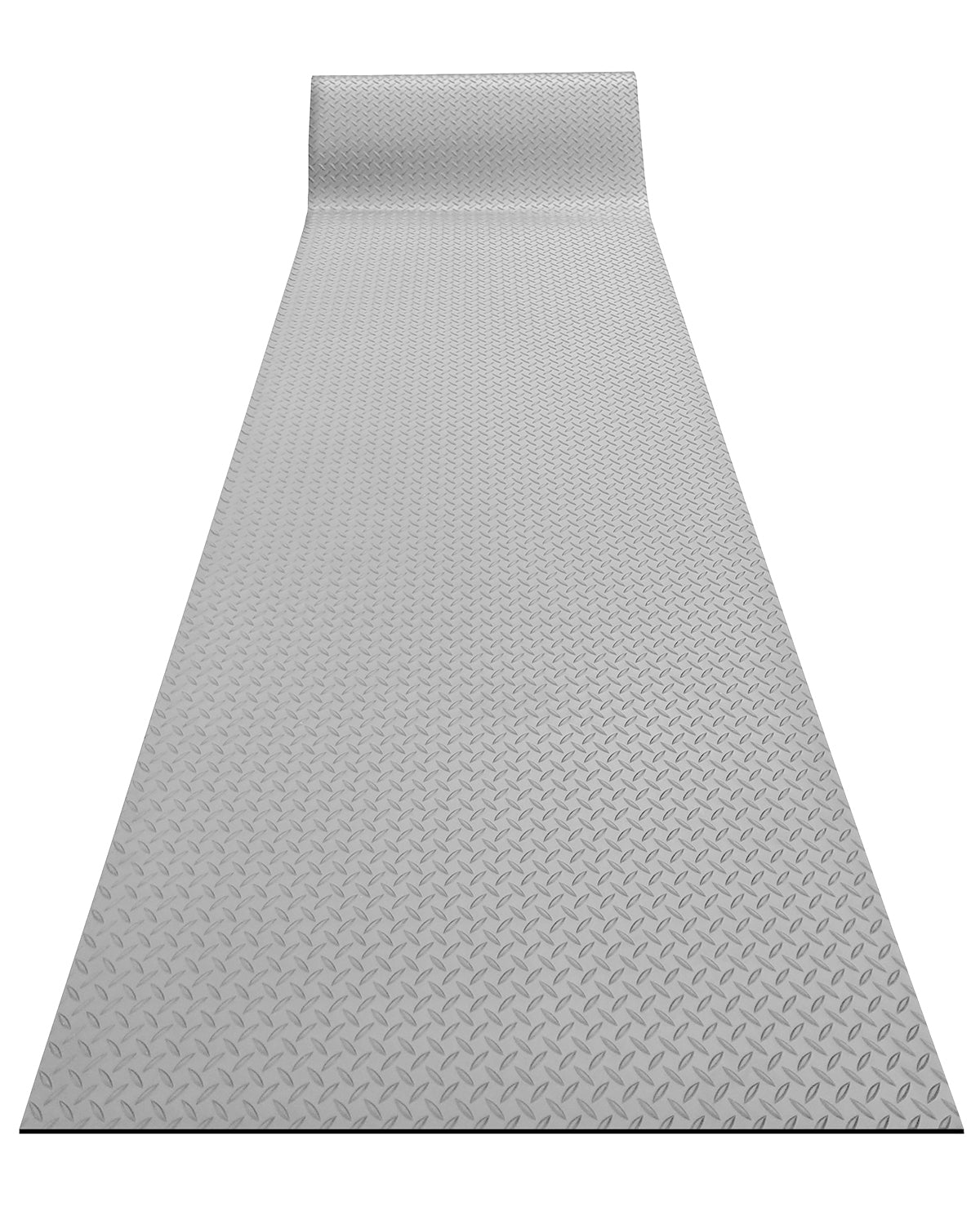

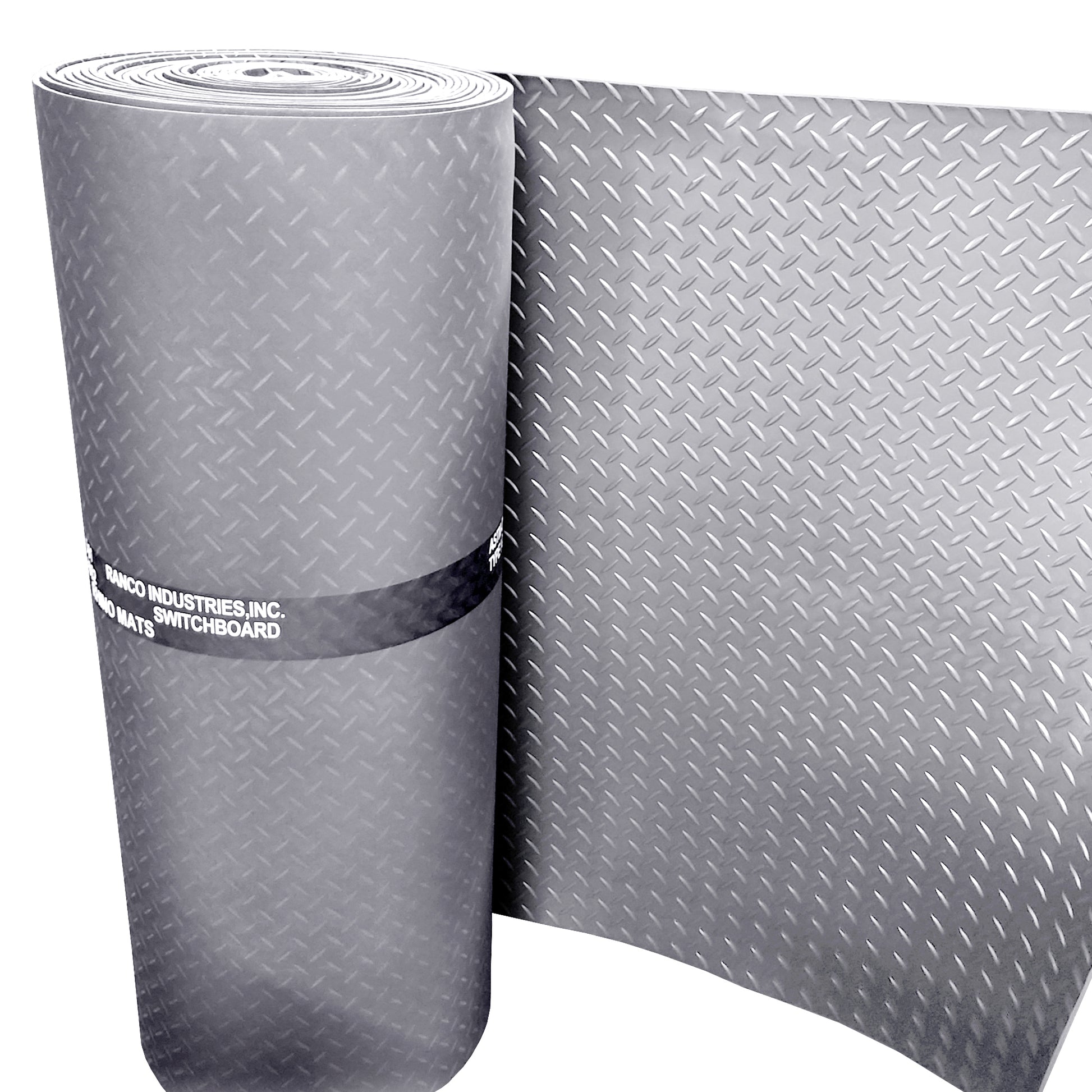

      Color: Gray-full rolls and cut lengths, 3/16” thick

      CLICK HERE FOR SIZE OFFERINGS & PART NUMBERS

      CLICK HERE FOR THE PRODUCT SPECS & DATASHEET
