Rhino Switchboard Mats – For the “if” in Life™

Description

Electrically insulating mats for marina and dockside safety around breaker boxes, power pedestals, and other water-exposed electrical equipment.

Features

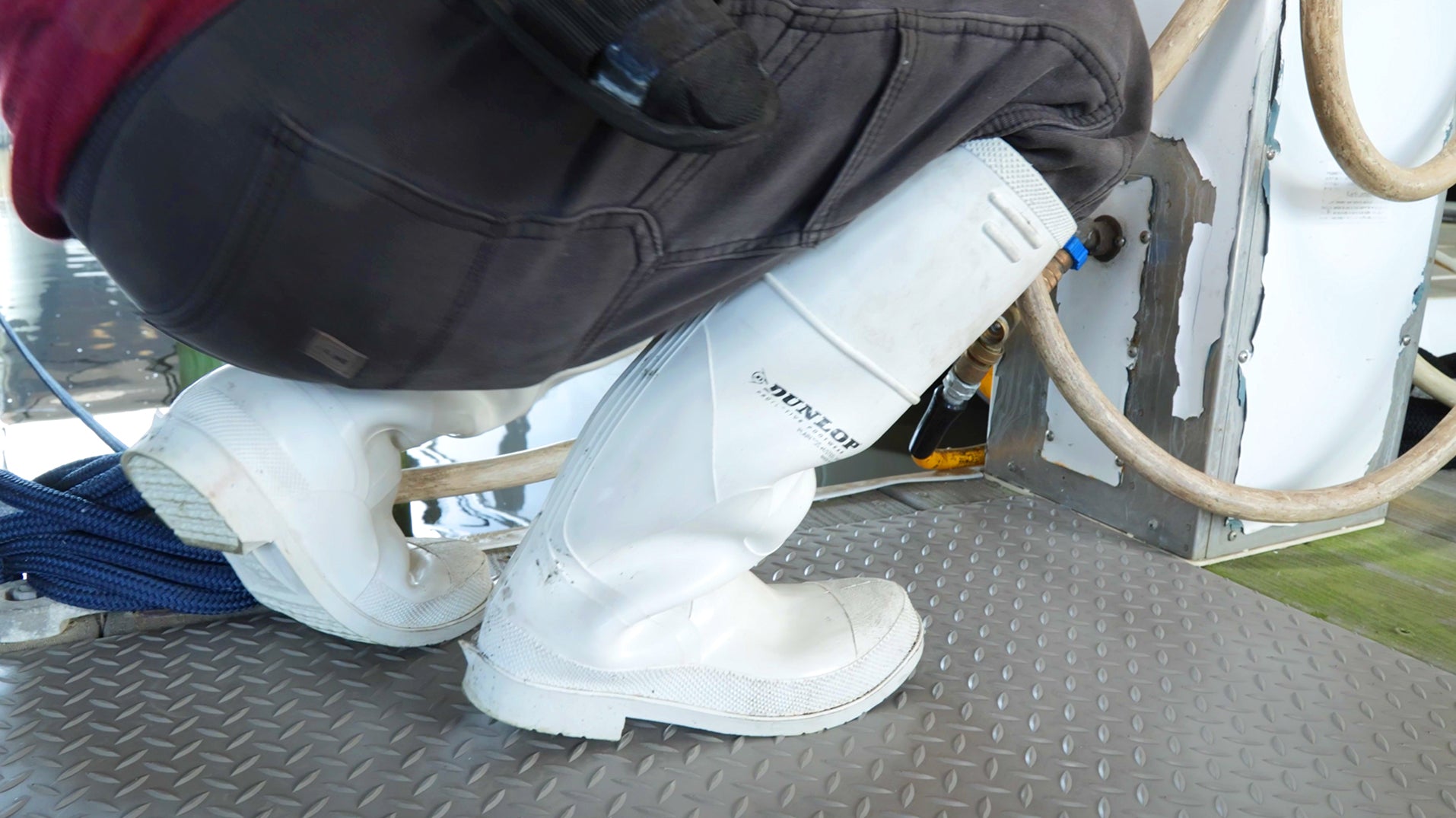

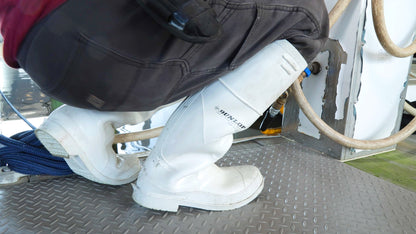

• Portable for dock-to-dock use

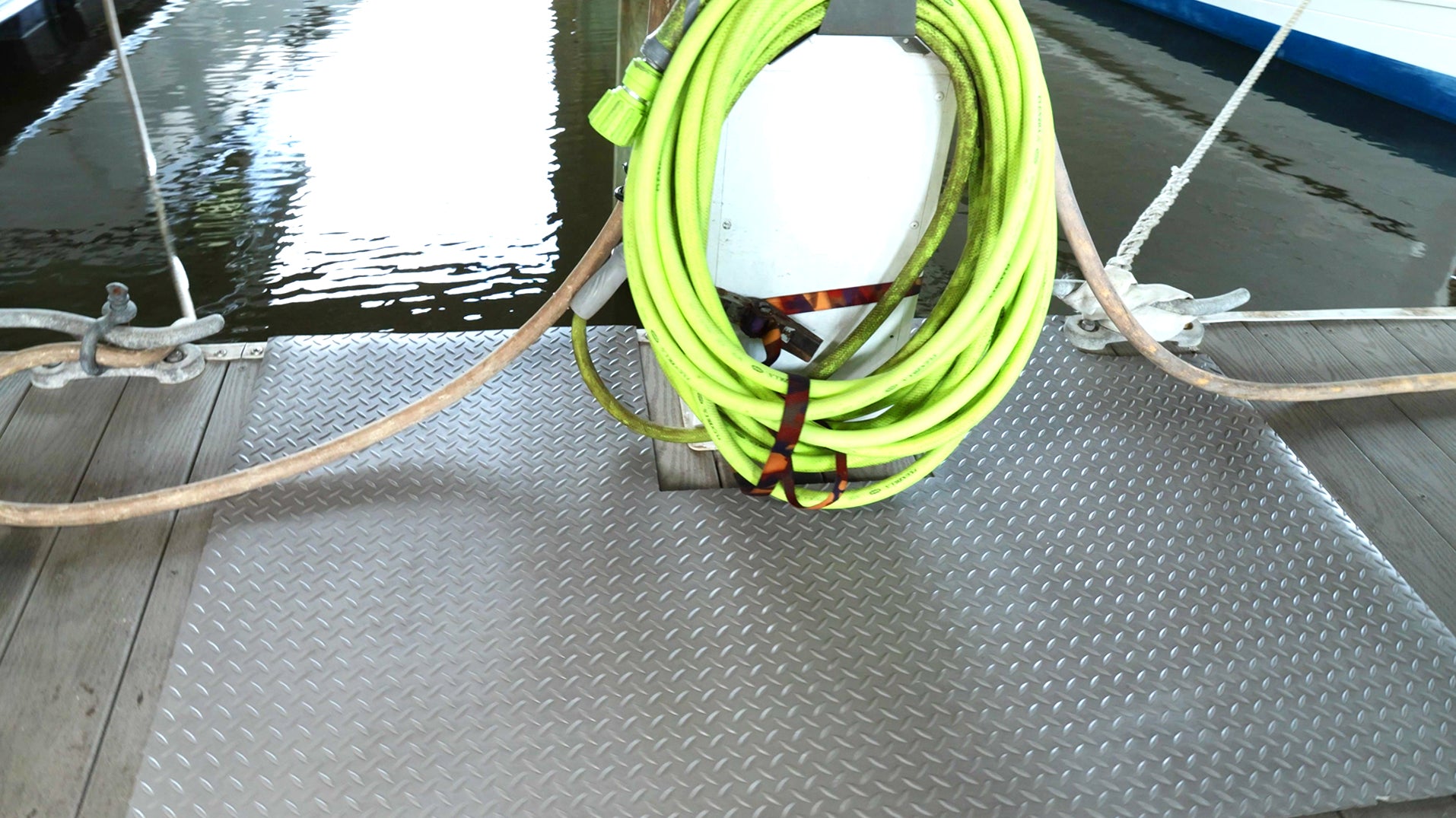

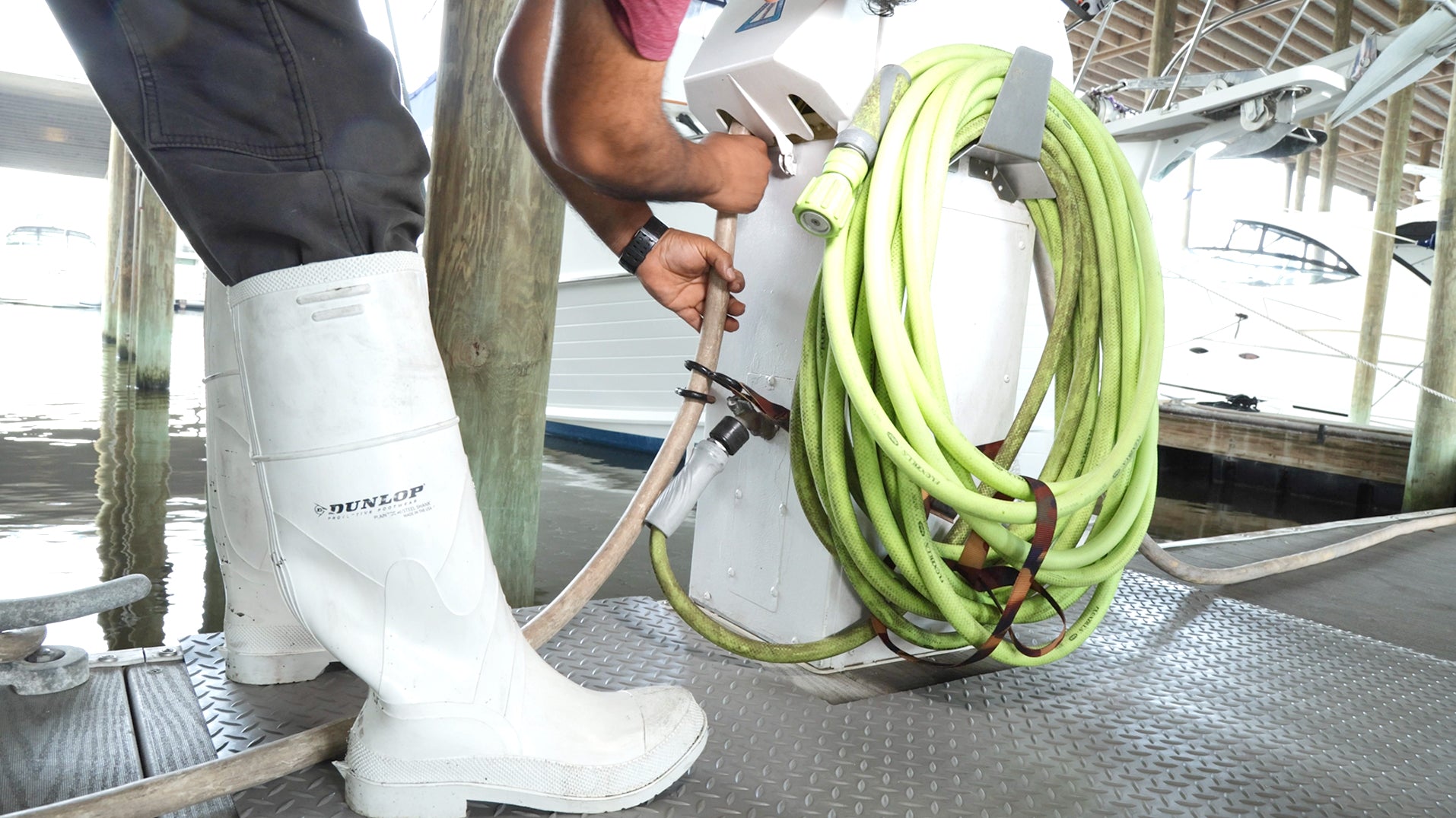

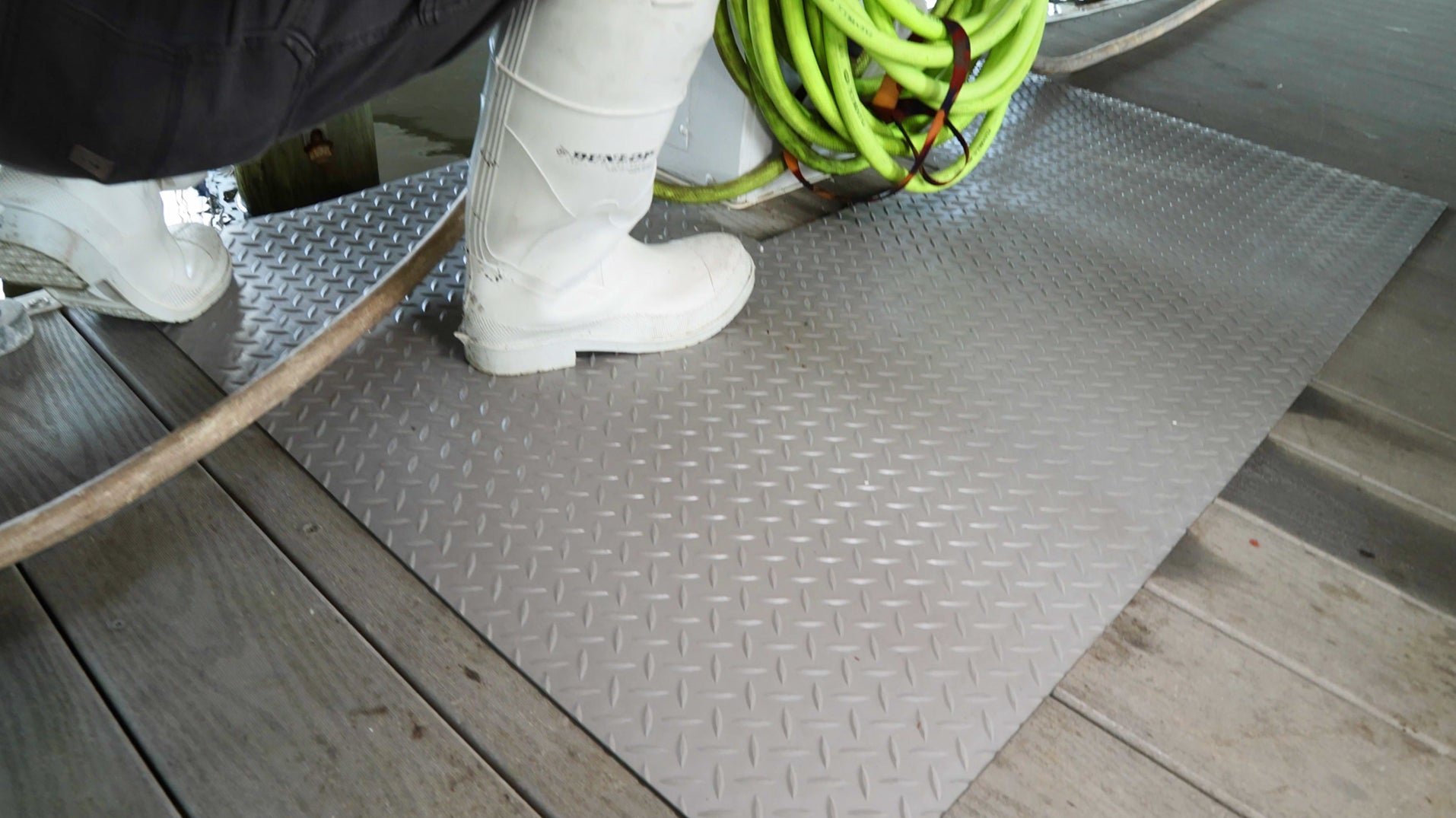

• Optional station mat with center cut for pedestal bases
• Certification printed on the back

Materials

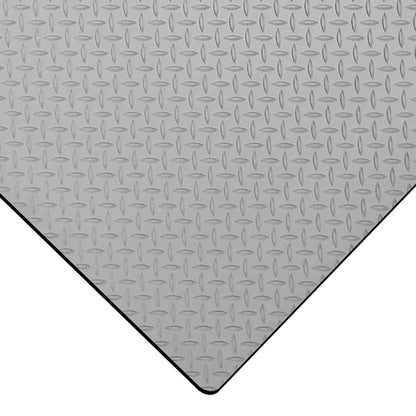

• High-performance insulating rubber
• ASTM D178 / ANSI J6.7 compliant

Sizes & Configurations

• Class 1, Type 1

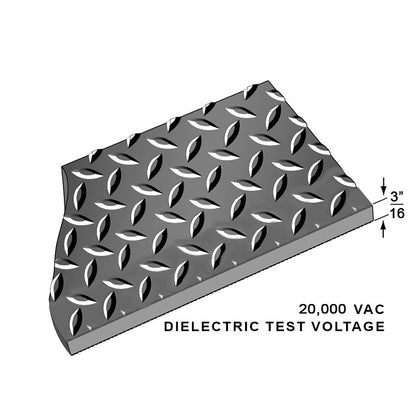

• Thickness: 3/16”
• Dielectric test: 20,000 VAC
• Proof test: 10,000 VAC
• Max use voltage: 7,500 VAC
• Sizes:

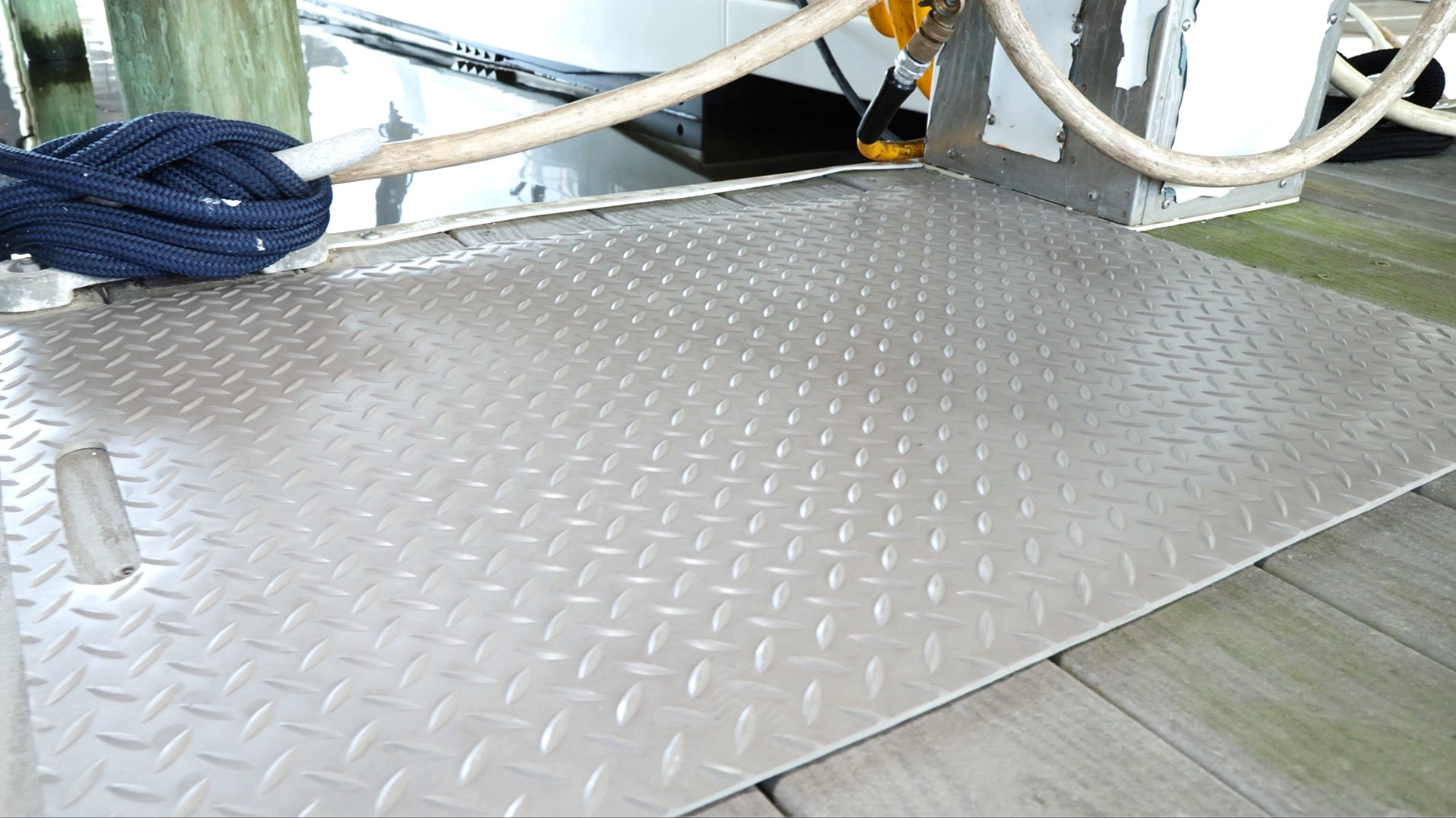

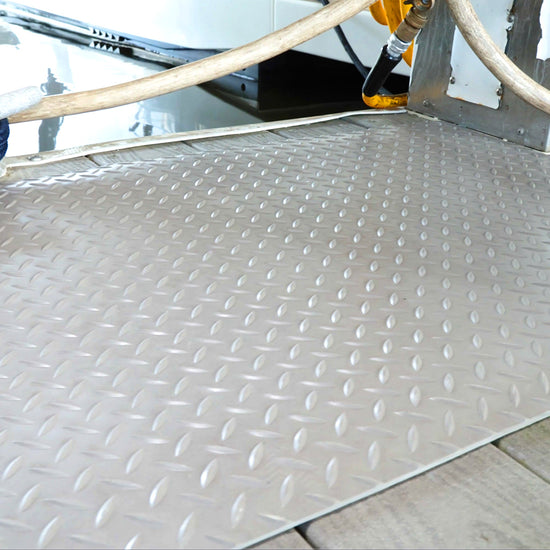

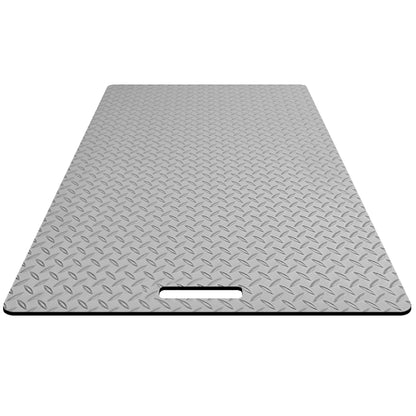

• Portable: 2’x3’

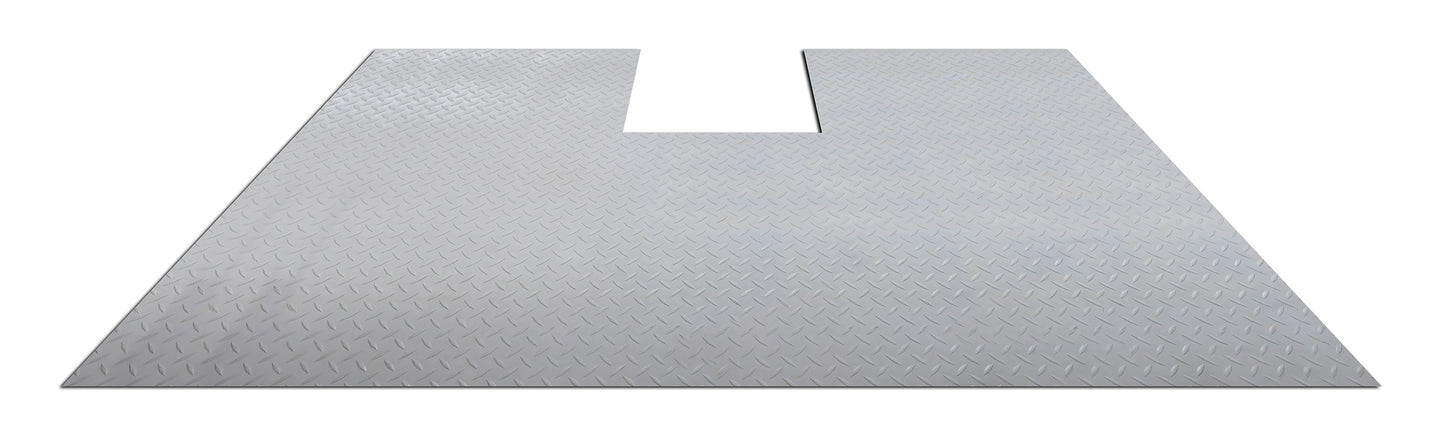

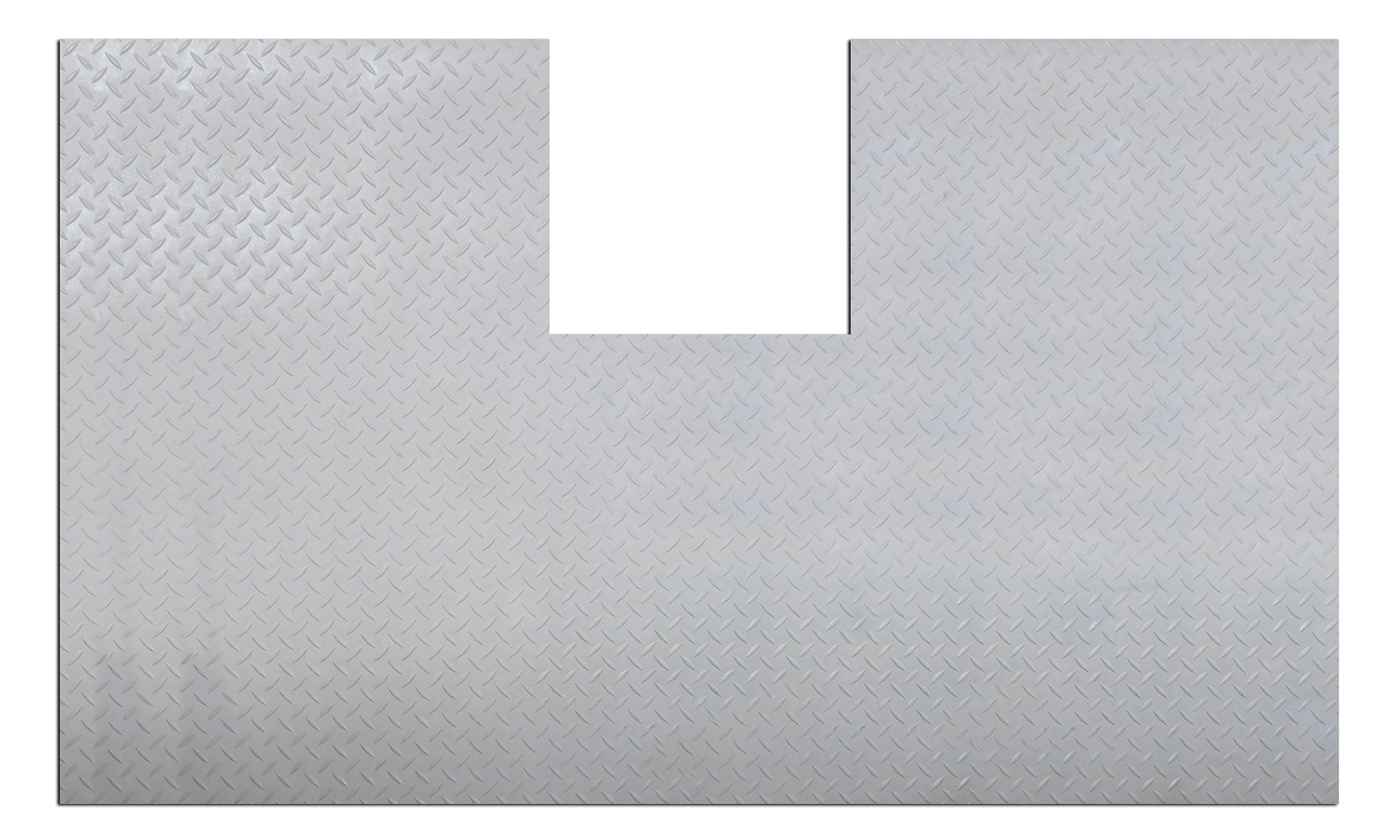

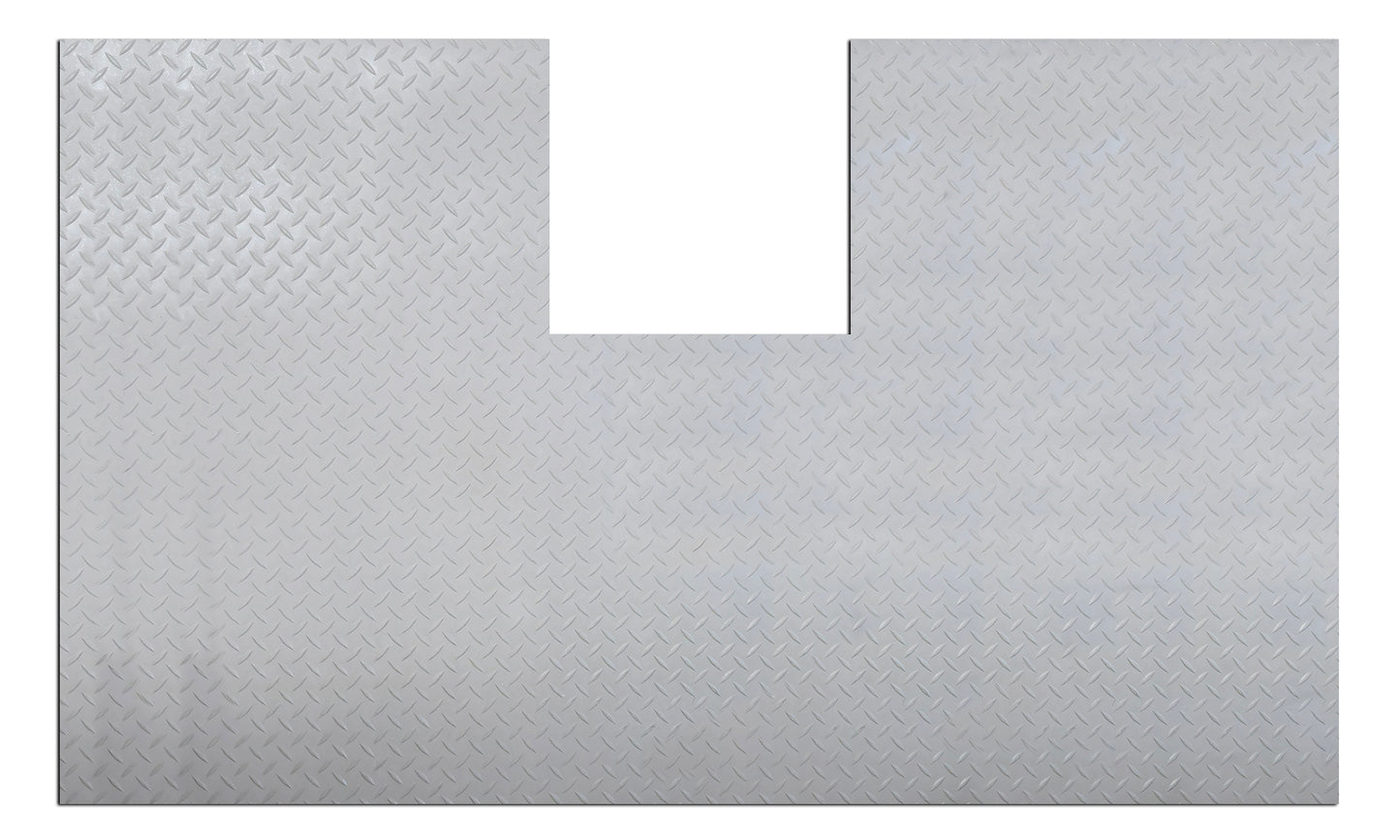

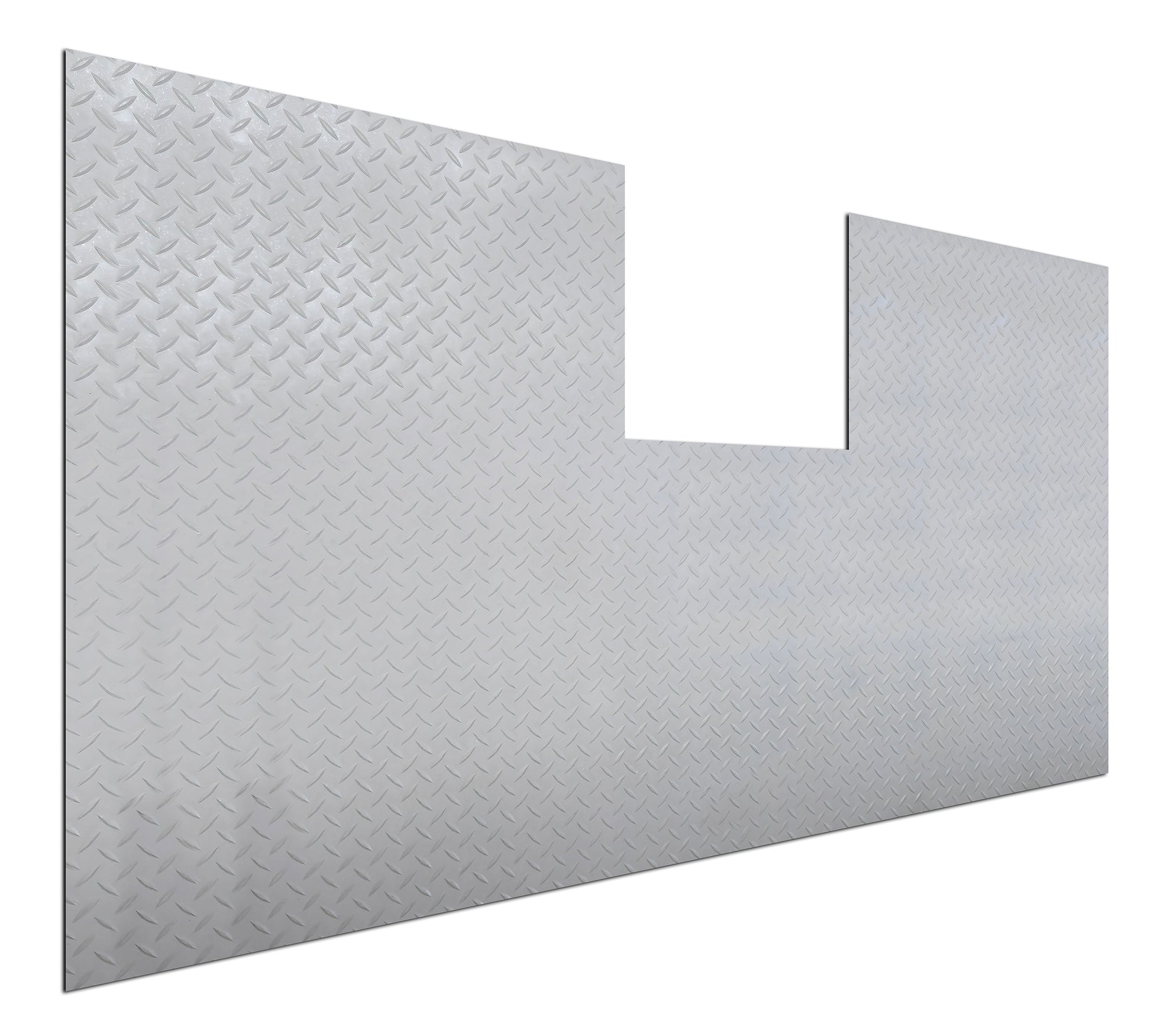

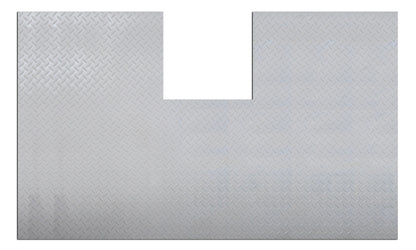

• Station mat: 3’x5’ with 14”x14” center cut
• Custom cut lengths from 3’ rolls

Benefits

• Enhances marina electrical safety
• Portable and easy to use
• Durable, marine-ready construction
