Conductive Diamond Anti-Fatigue

Description

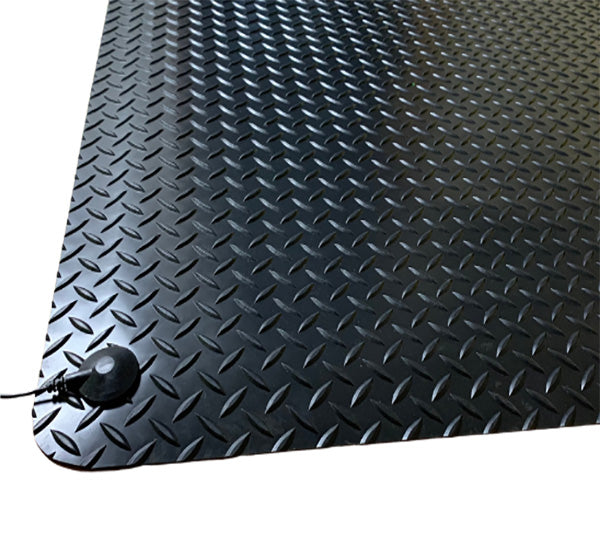

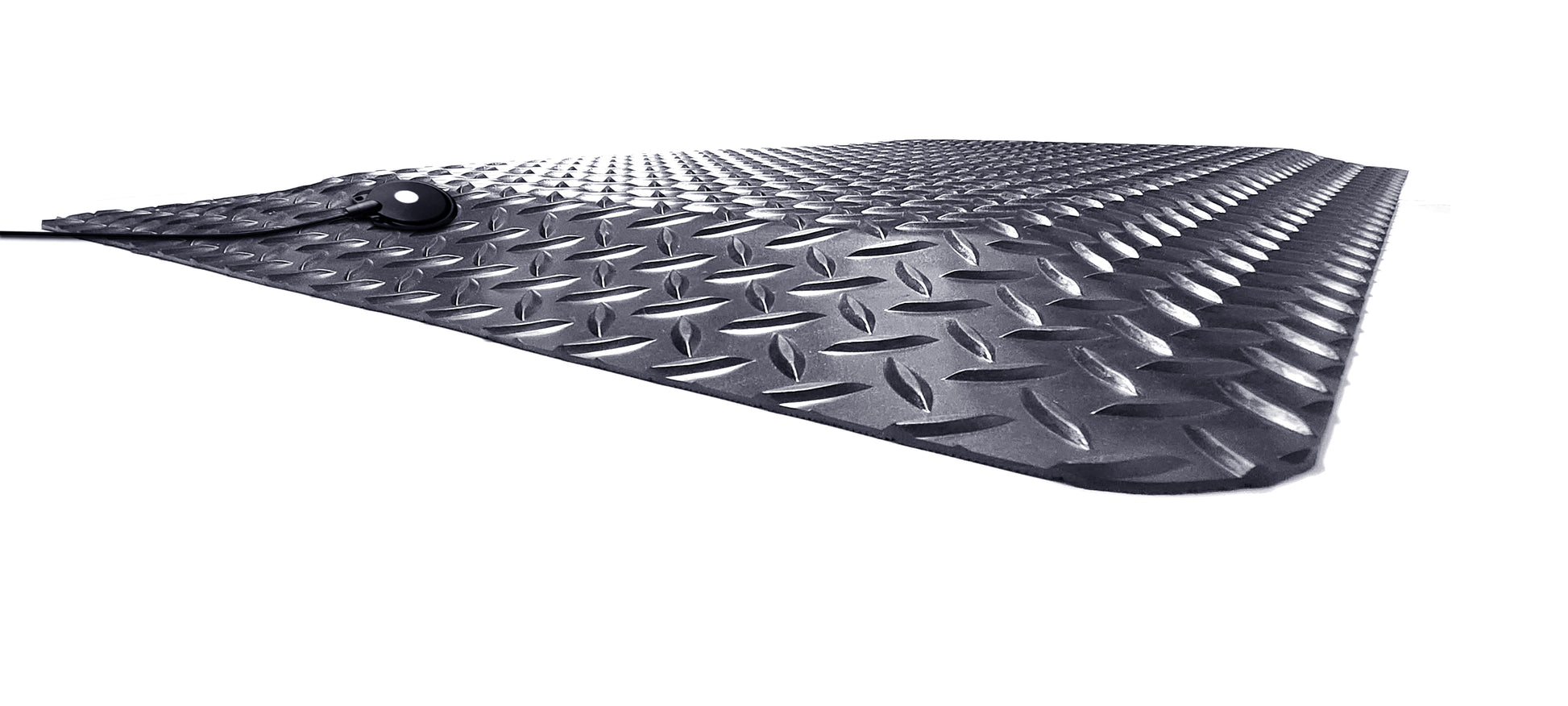

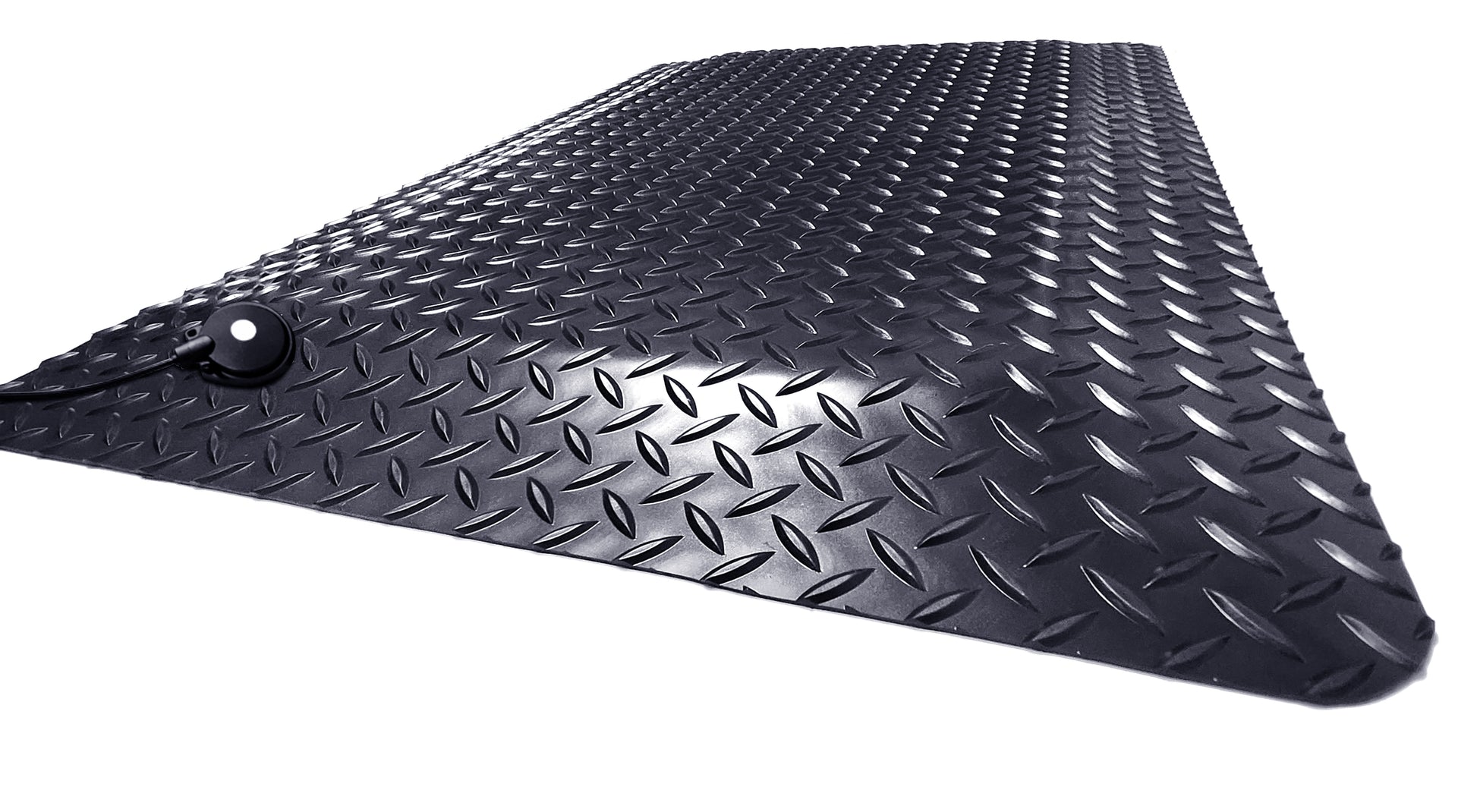

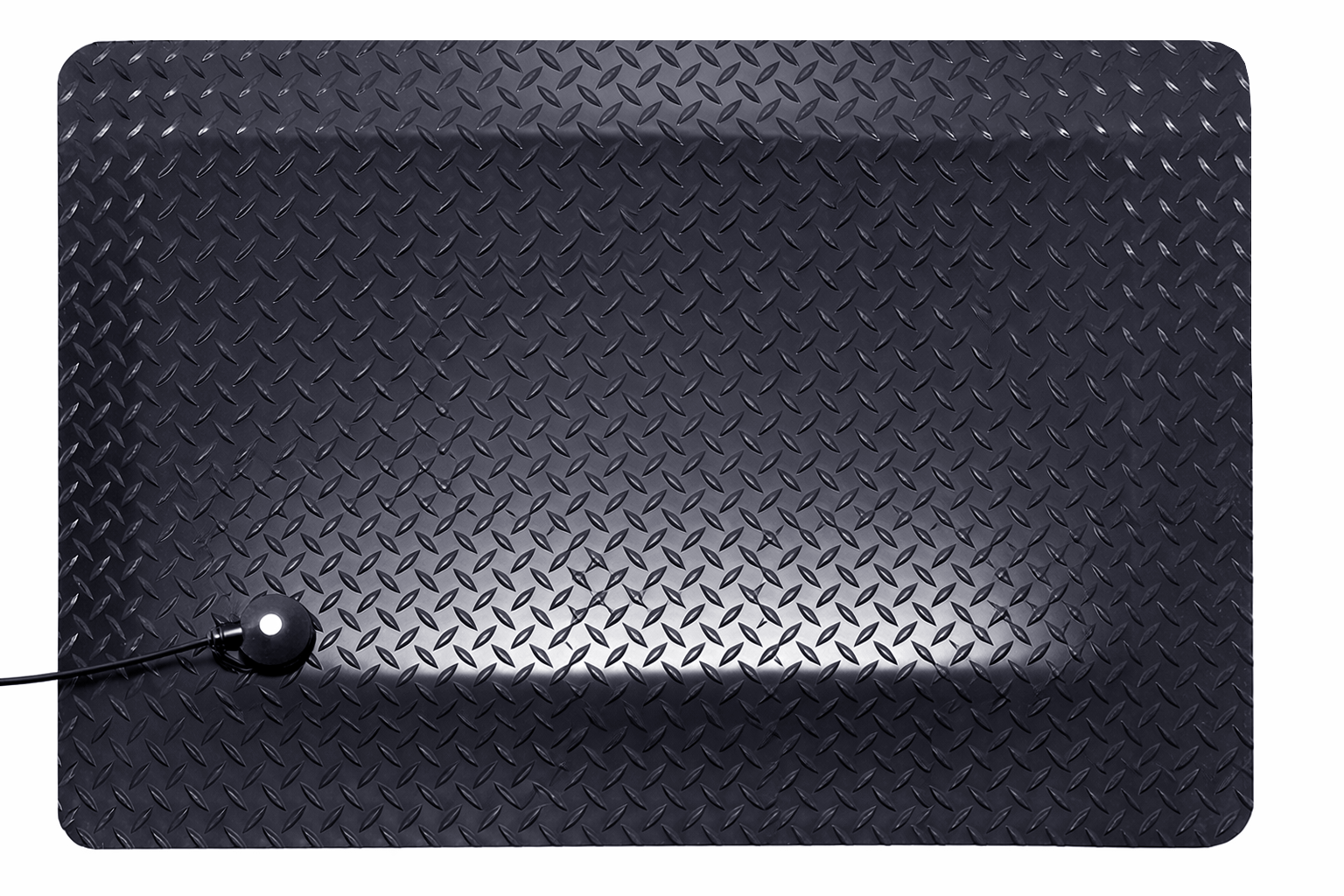

The Rhino Conductive Diamond Anti-Fatigue Mat combines static electricity dissipation with superior comfort for personnel in ESD-sensitive environments. It safely disperses static the moment an operator steps on the mat, while providing anti-fatigue support for long periods of standing.

Features

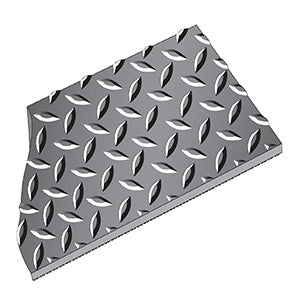

• Electrically conductive diamond plate surface with resilient closed-cell polymeric sponge base

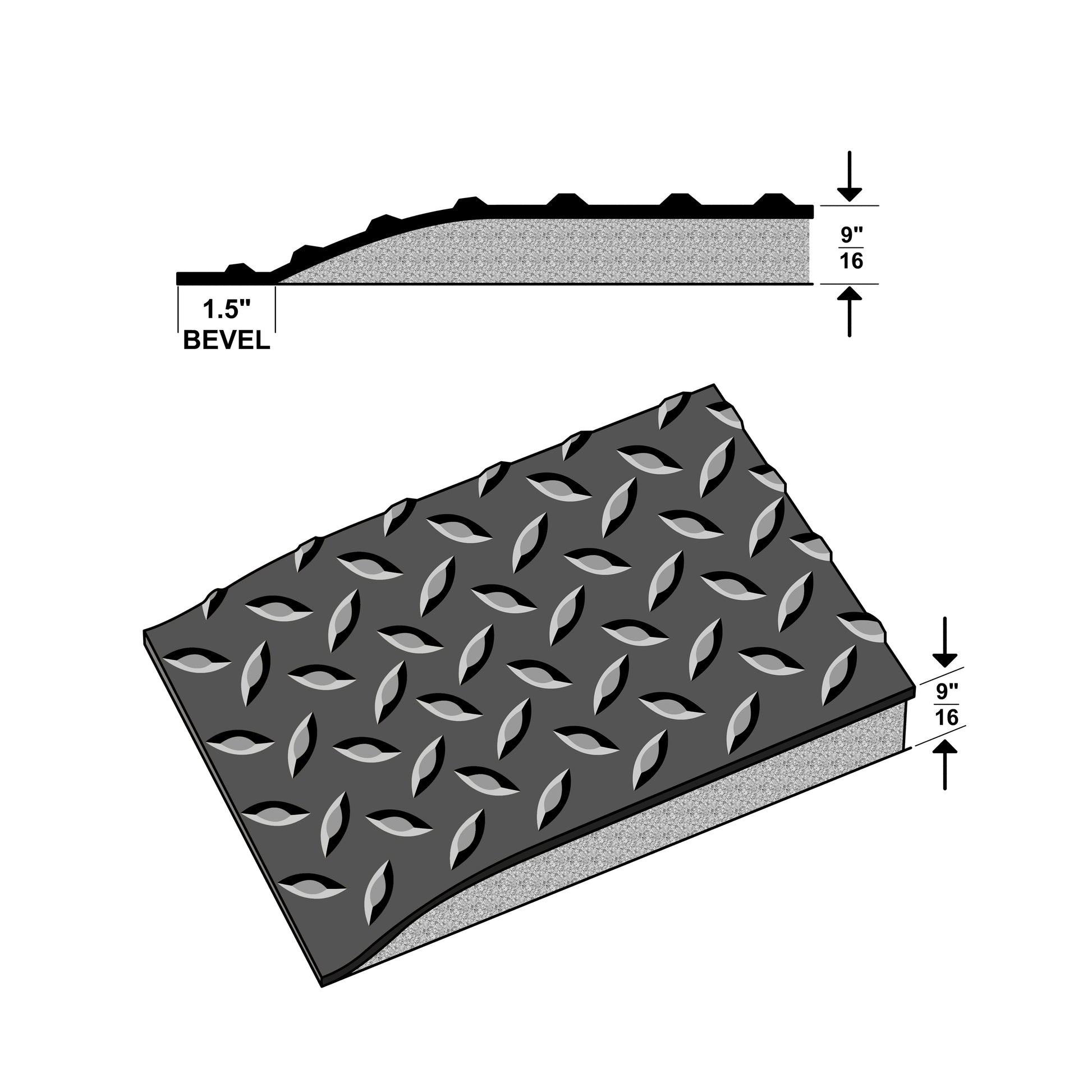

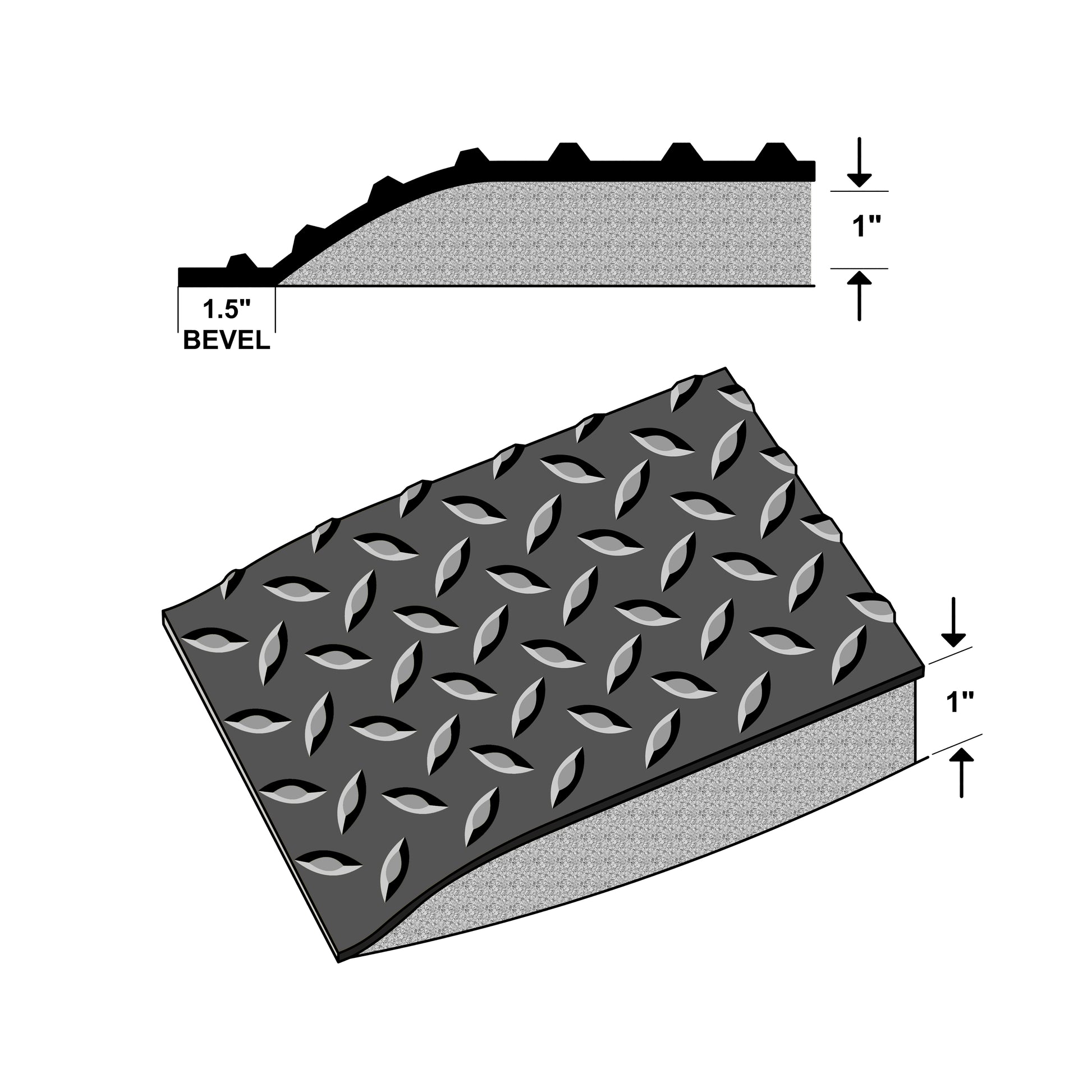

• Available in two overall thicknesses: 9/16” or 1”
• Beveled edges for safety and accessibility
• Disperses static from personnel to protect sensitive equipment
• Requires grounding via ground cord AA-107; surface should be kept clean

Materials

• Conductive diamond polymer surface
• Closed-cell polymeric sponge base

Specifications

• Surface Thickness: 5/32”
• Overall Thickness: 9/16” or 1”
• Resistivity: < 10⁶ Ω (tested per ESD-S7.1 1994)
• Stock Sizes: 2’x3’, 3’x5’
• Custom Sizes: Available in 2’, 3’, and 4’ widths

Applications

• Electronics assembly and repair
• Cleanrooms and ESD-sensitive workstations
• Areas requiring anti-fatigue support with ESD protection

Benefits

• Protects sensitive equipment by dispersing static instantly
• Provides ergonomic support for standing personnel
• Durable, high-traffic diamond surface with safe beveled edges

Warranty

• • Not specified
