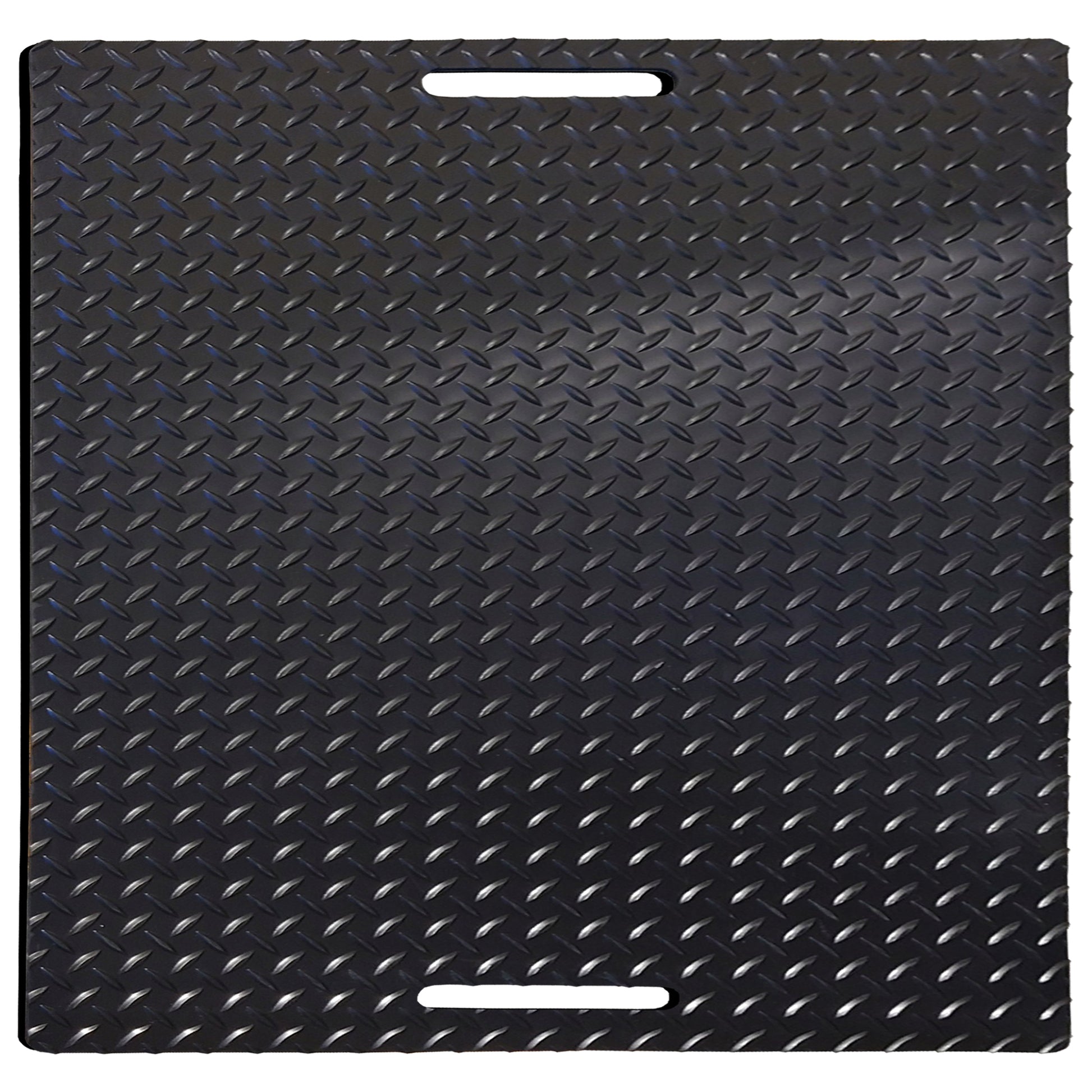

Fusebox Safety Mat

Fusebox Safety Mat

• The Fusebox Safety Mats by Rhino provide portable platform protection against electric shock.

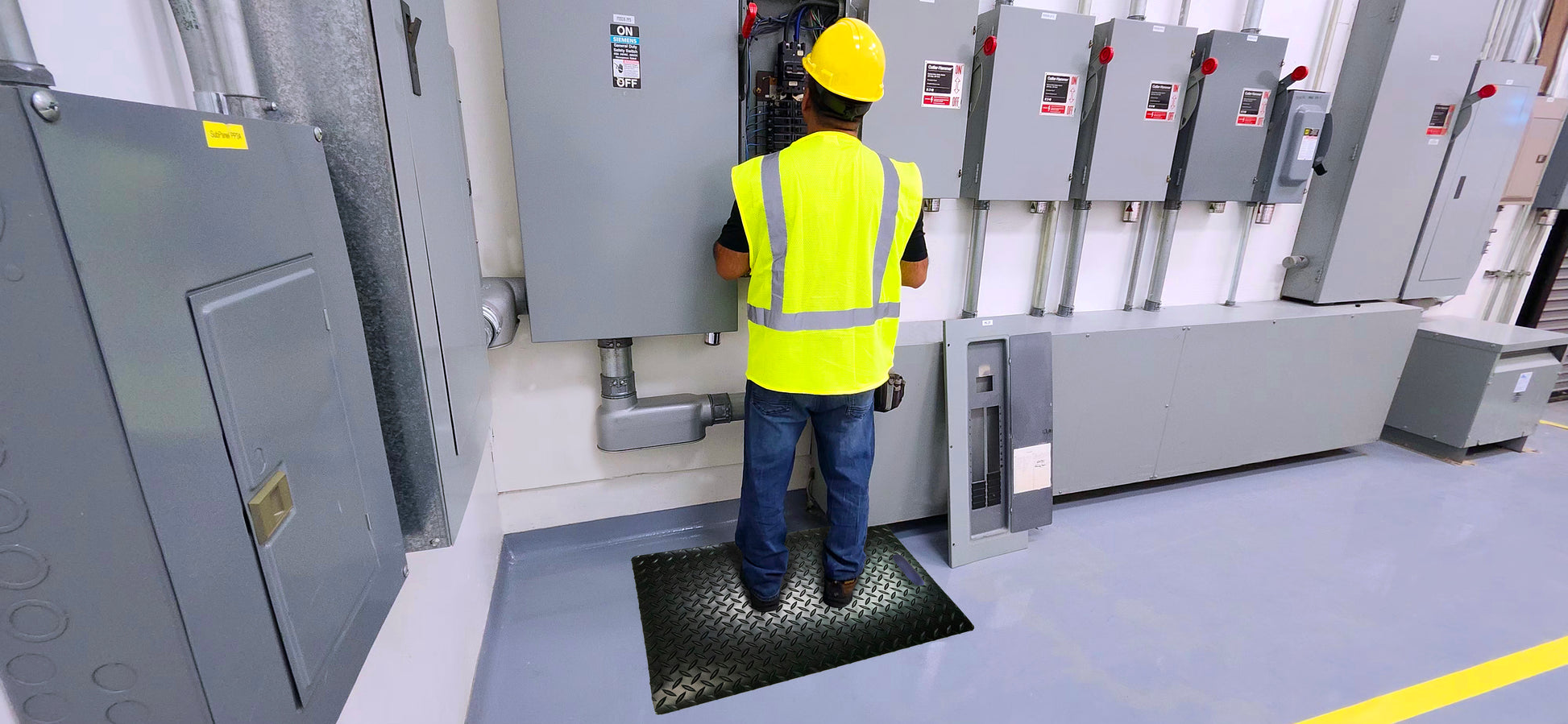

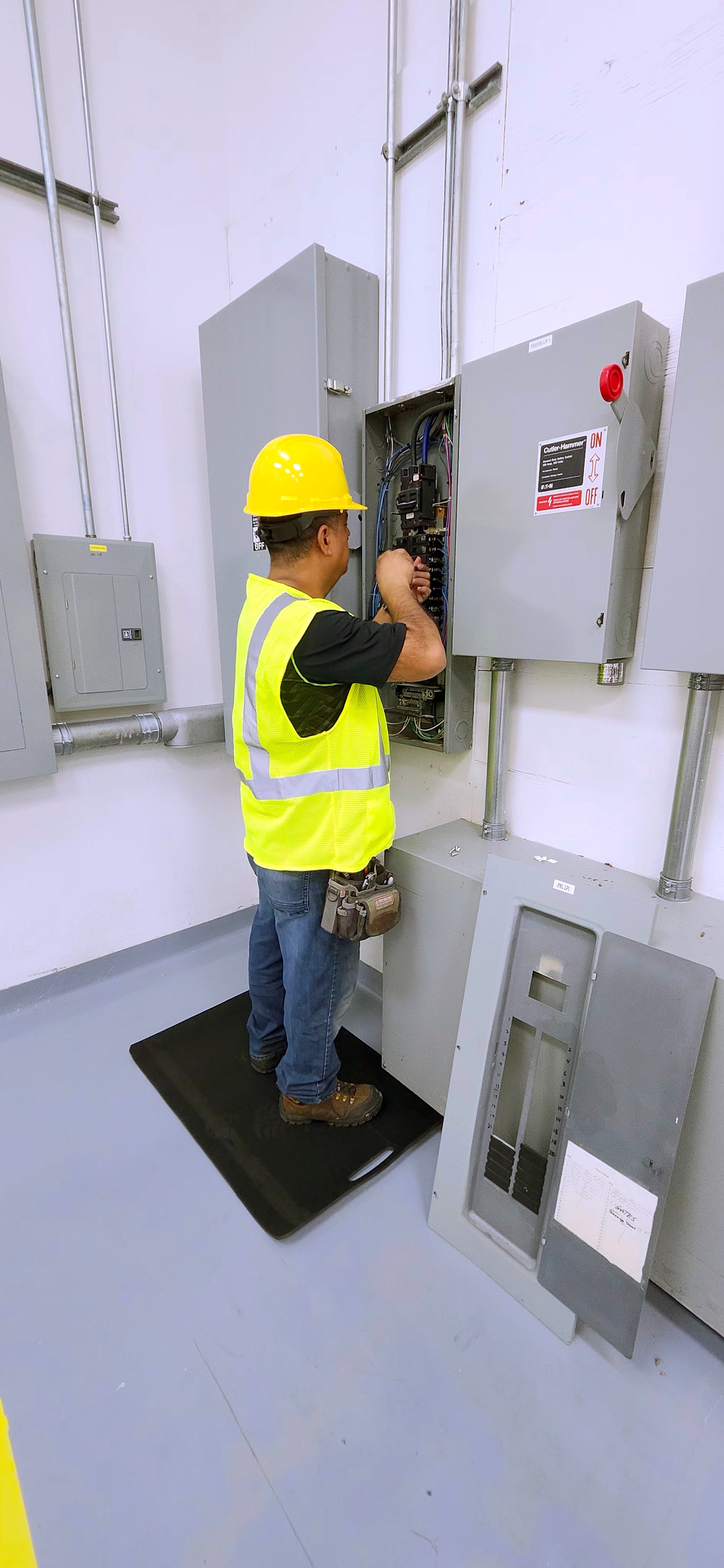

• It is pro tempore insulation for Inside Wiremen and Switchmen for Final Termination,    Energizing, and de-energizing distribution. Personnel working around substations, transformers, switches, electrical panels, engine rooms, generators, and Control House situations. .

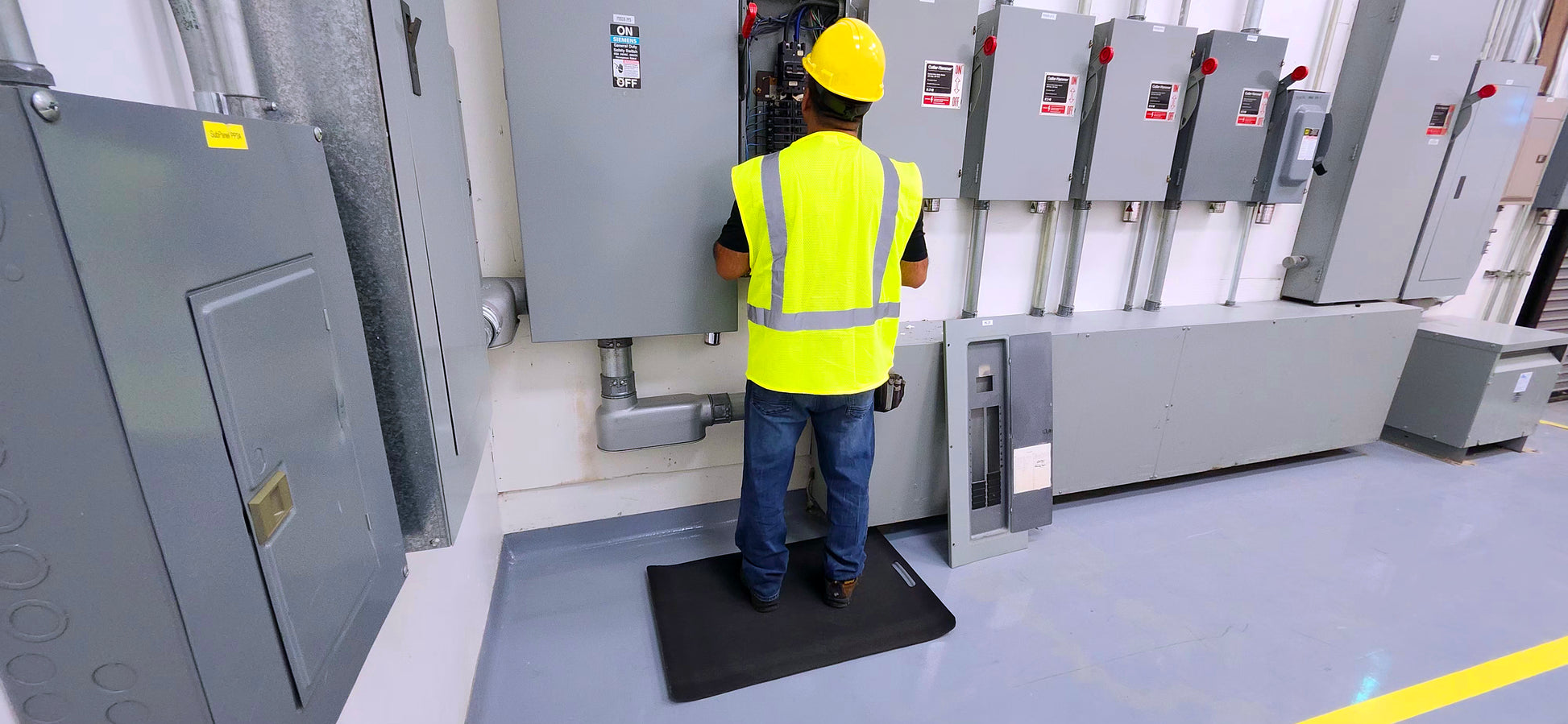

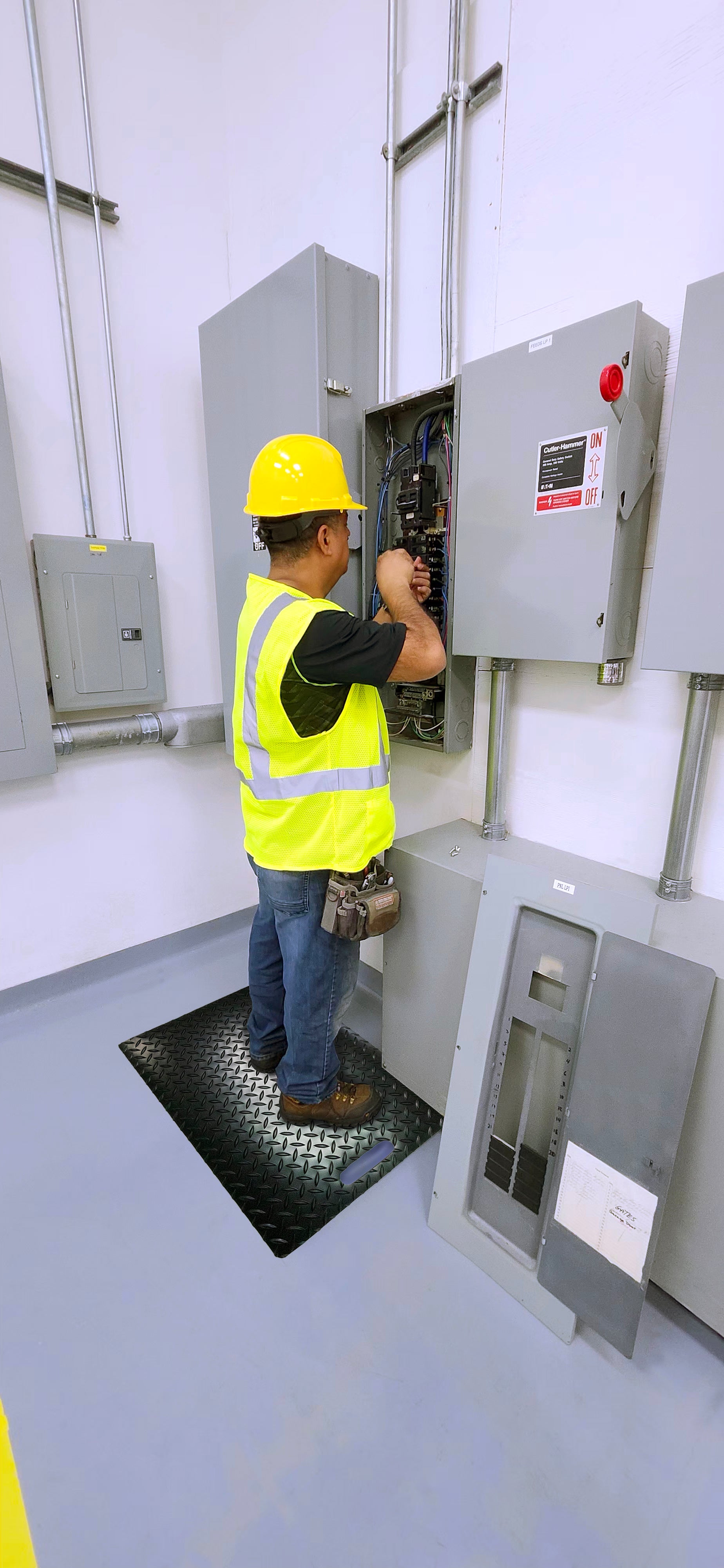

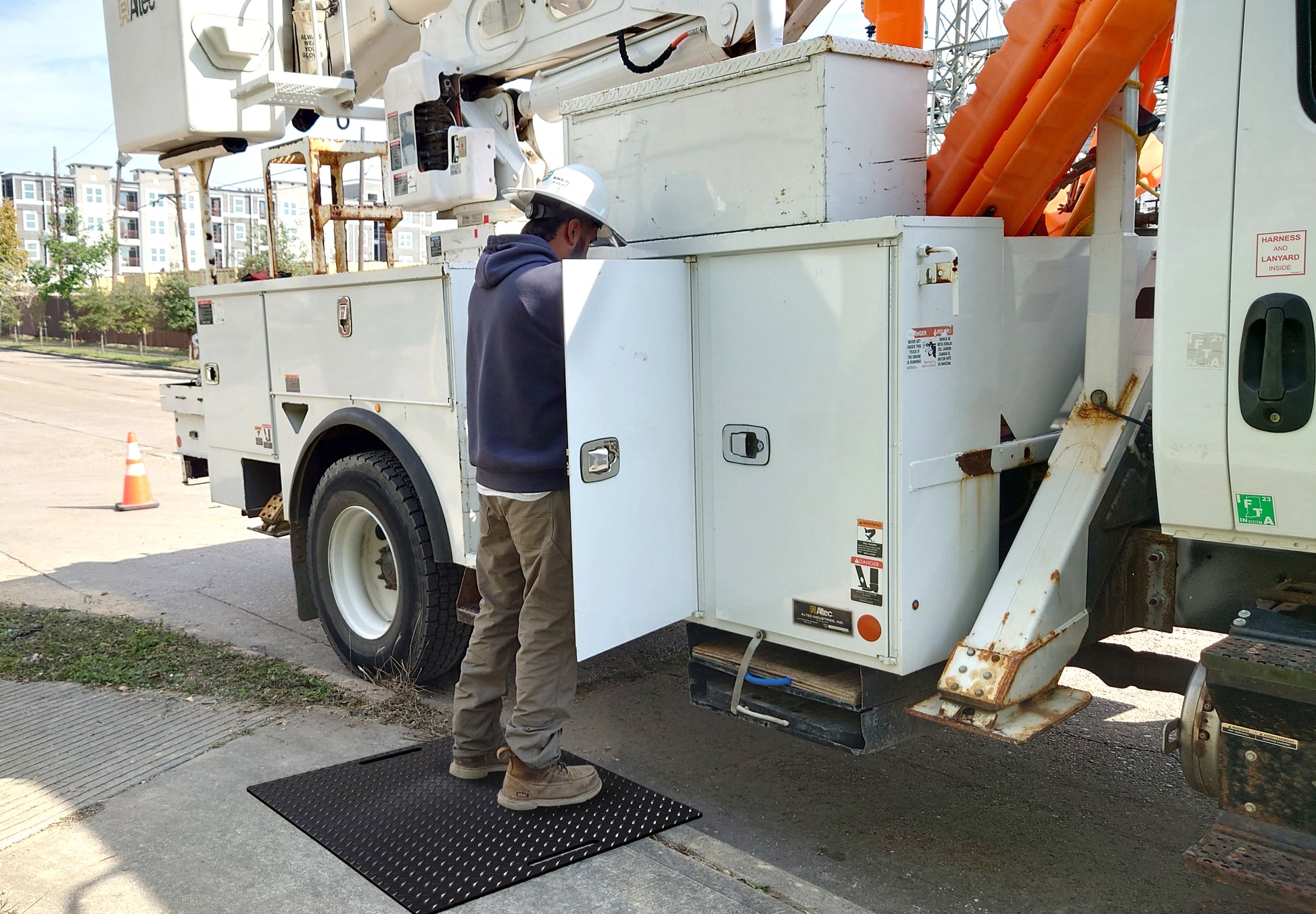

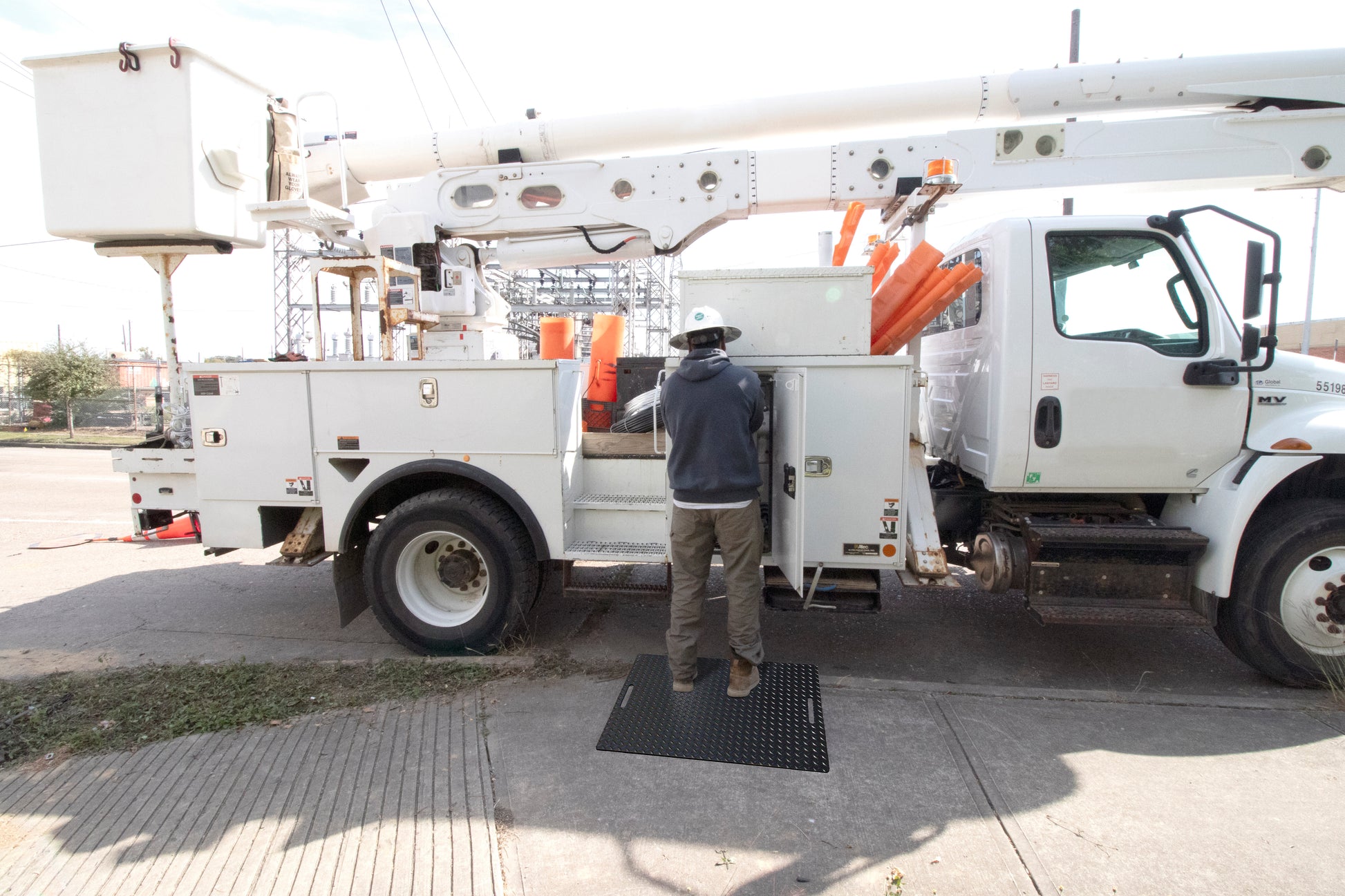

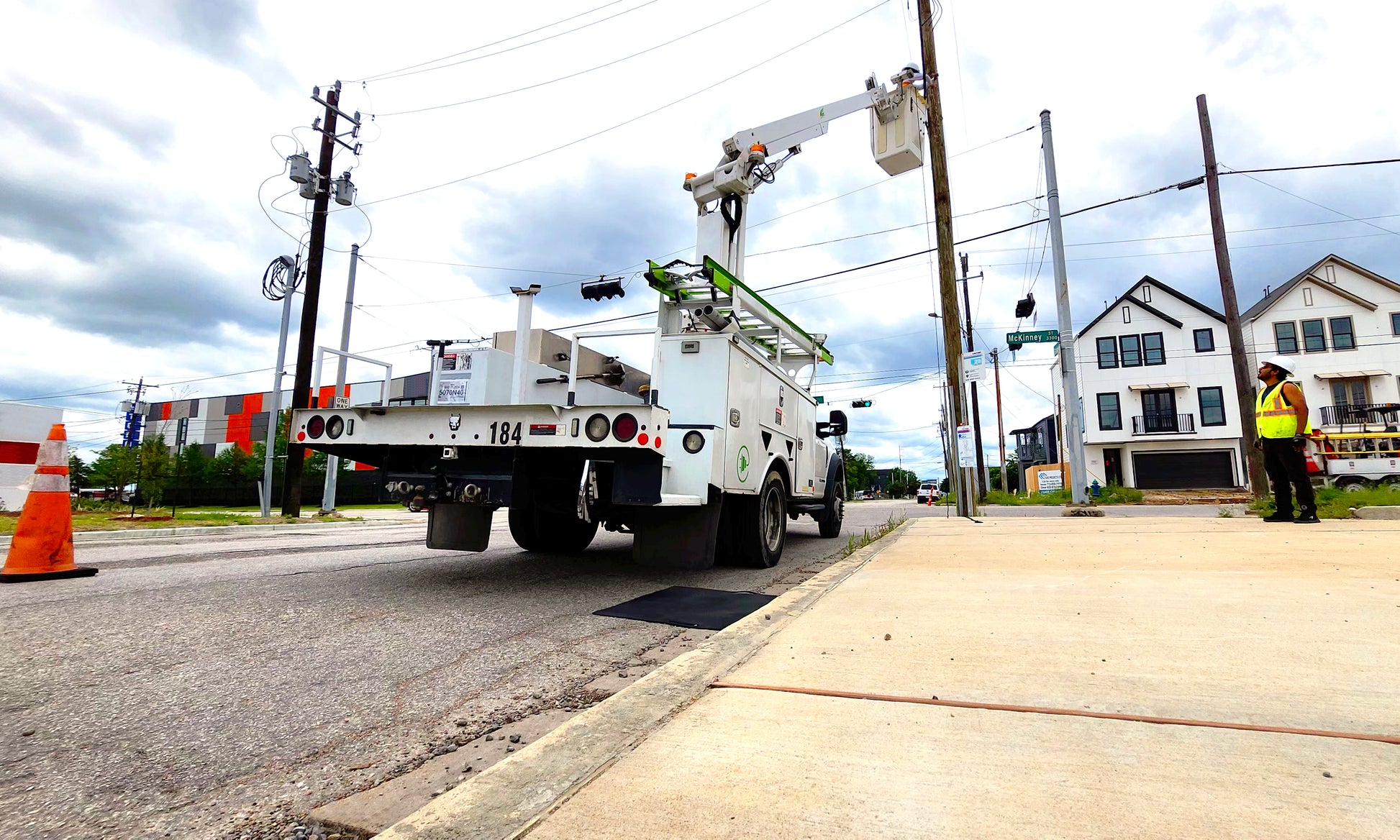

• Easily carried to job sites and multiple locations and dropped in front of high-voltage equipment or Bucket Trucks.

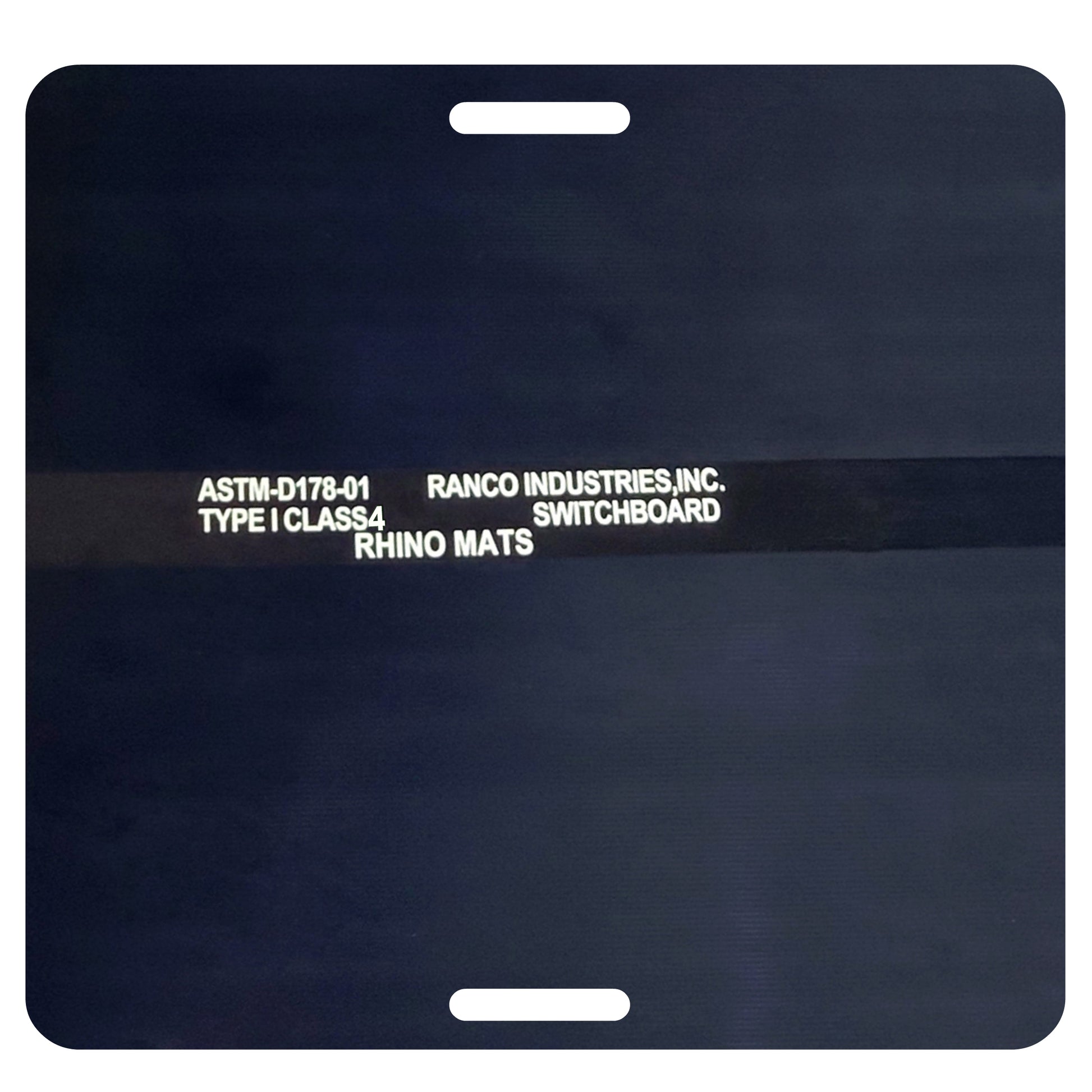

• Certification imprinted on the back

• Ozone Resistance, Flame Resistance, Self-Extinguishing, Oil Resistance, Diamond & Corrugated Surface, Color Black.

• Fusebox Safety Mats should not be relied upon solely to protect against electrical hazards and should be used in conjunction with engineering safeguards and associated work practices.

• Tested to ASTM D178/ANSI J6.7 specifications.

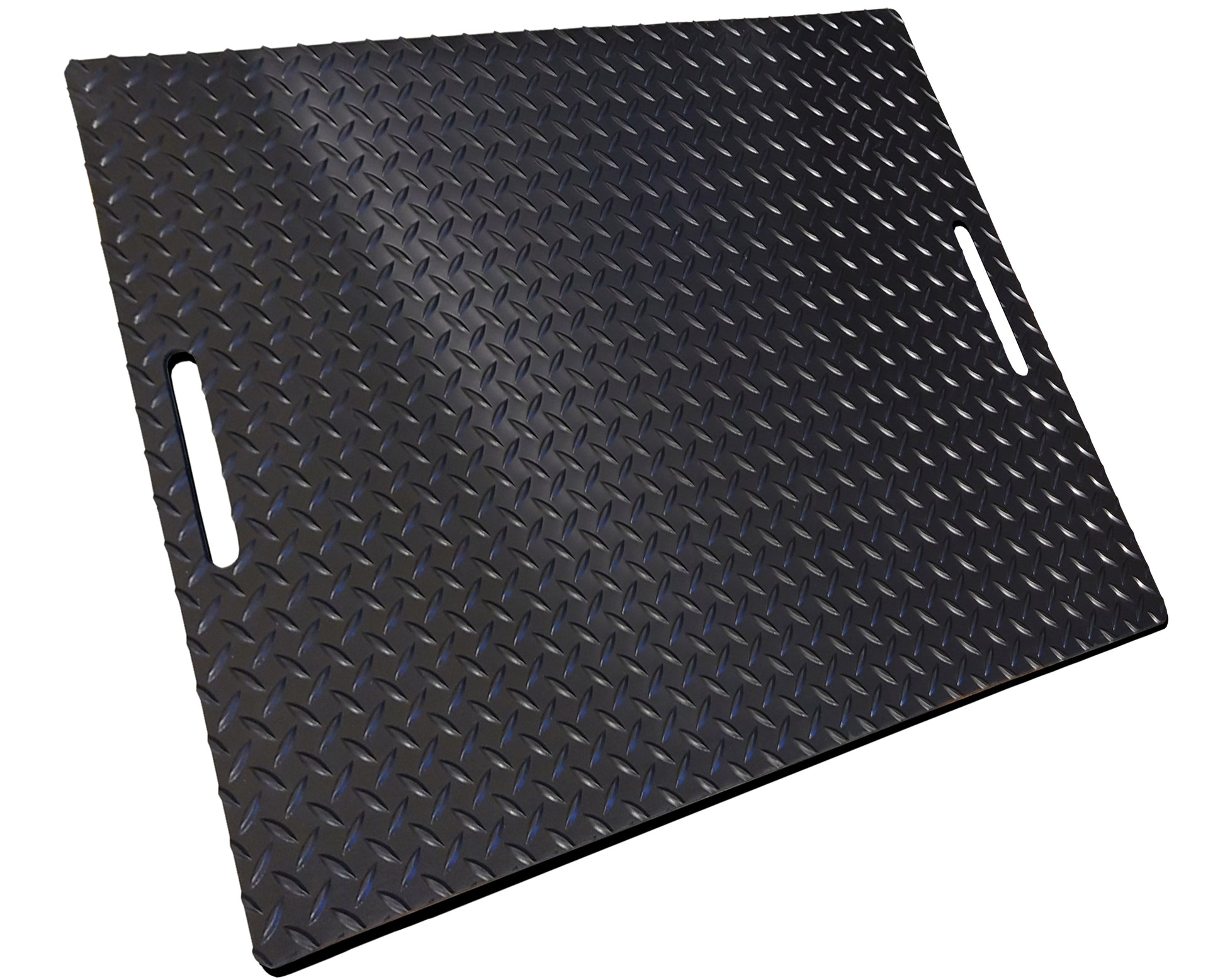

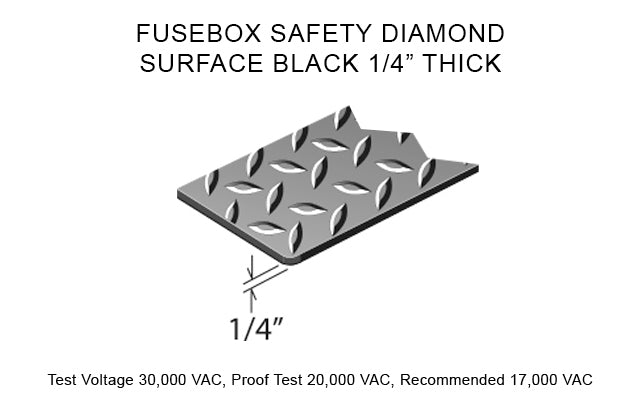

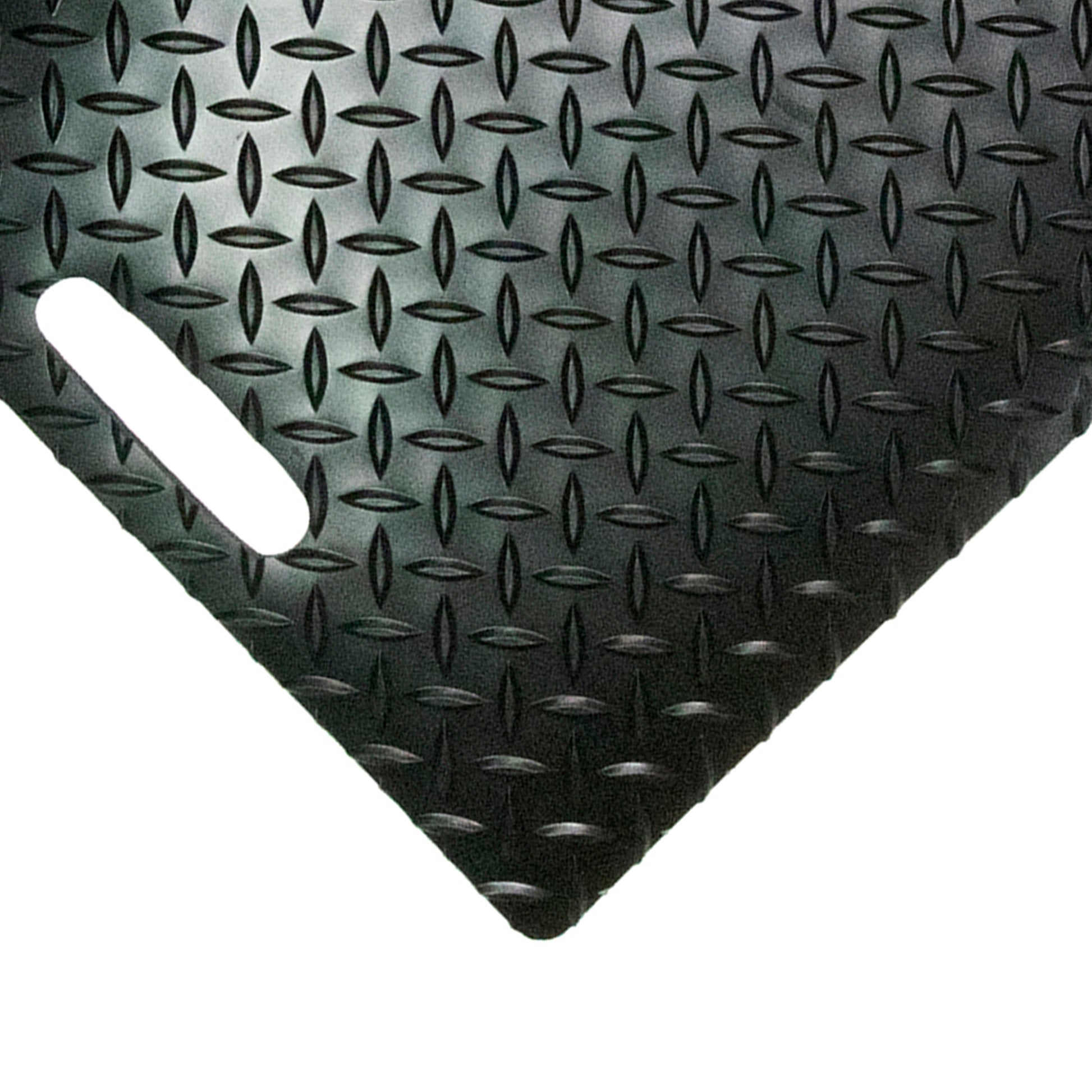

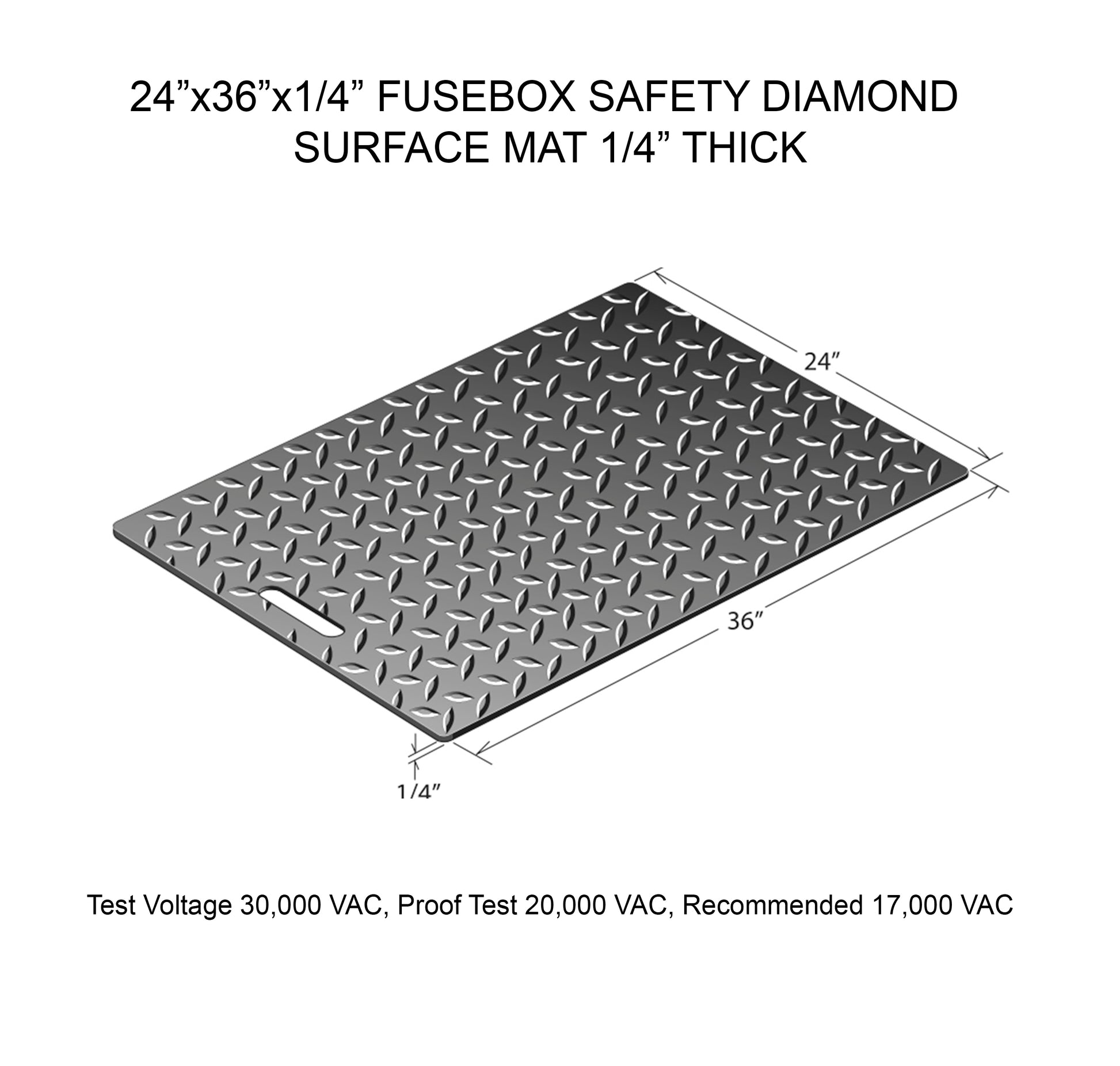

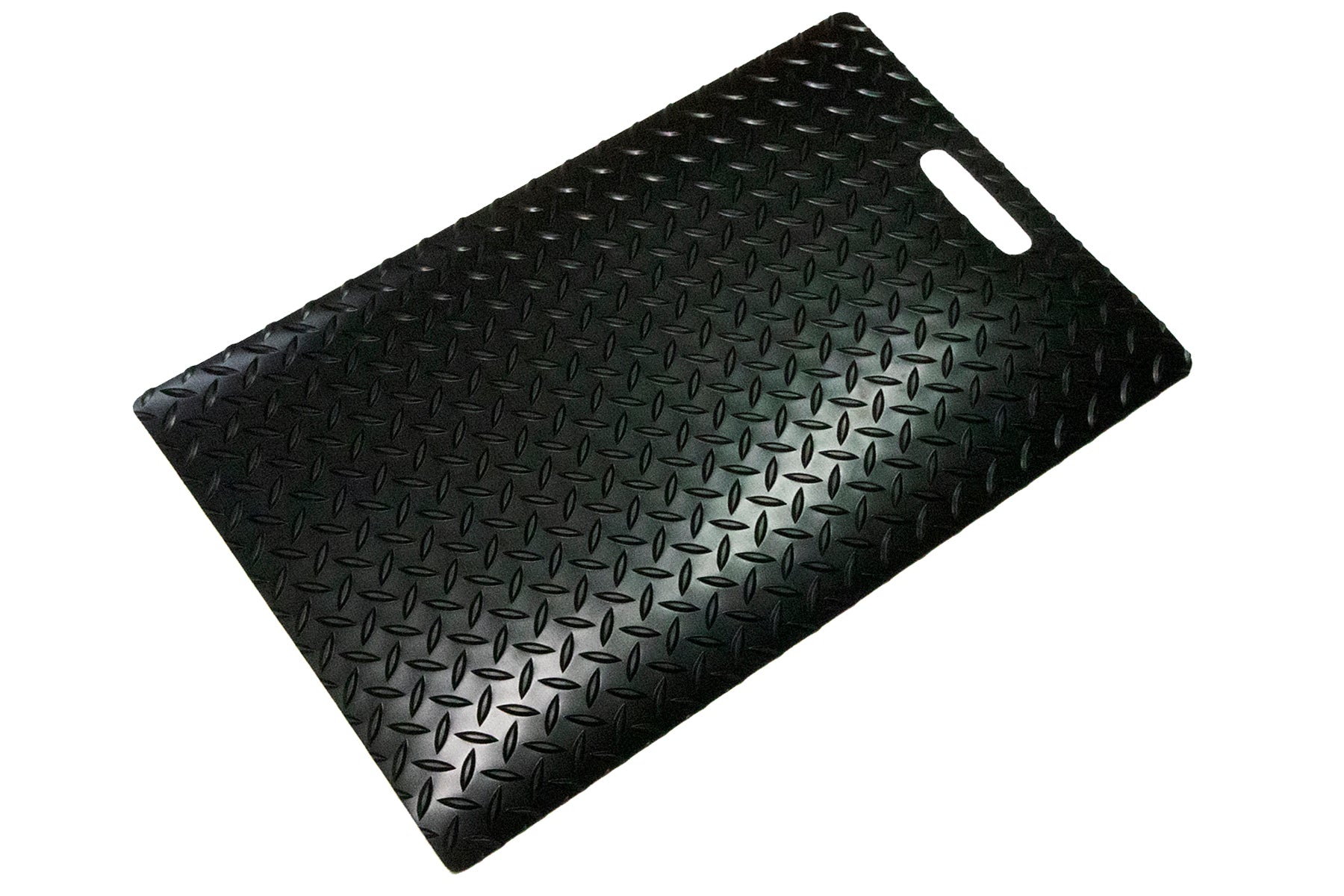

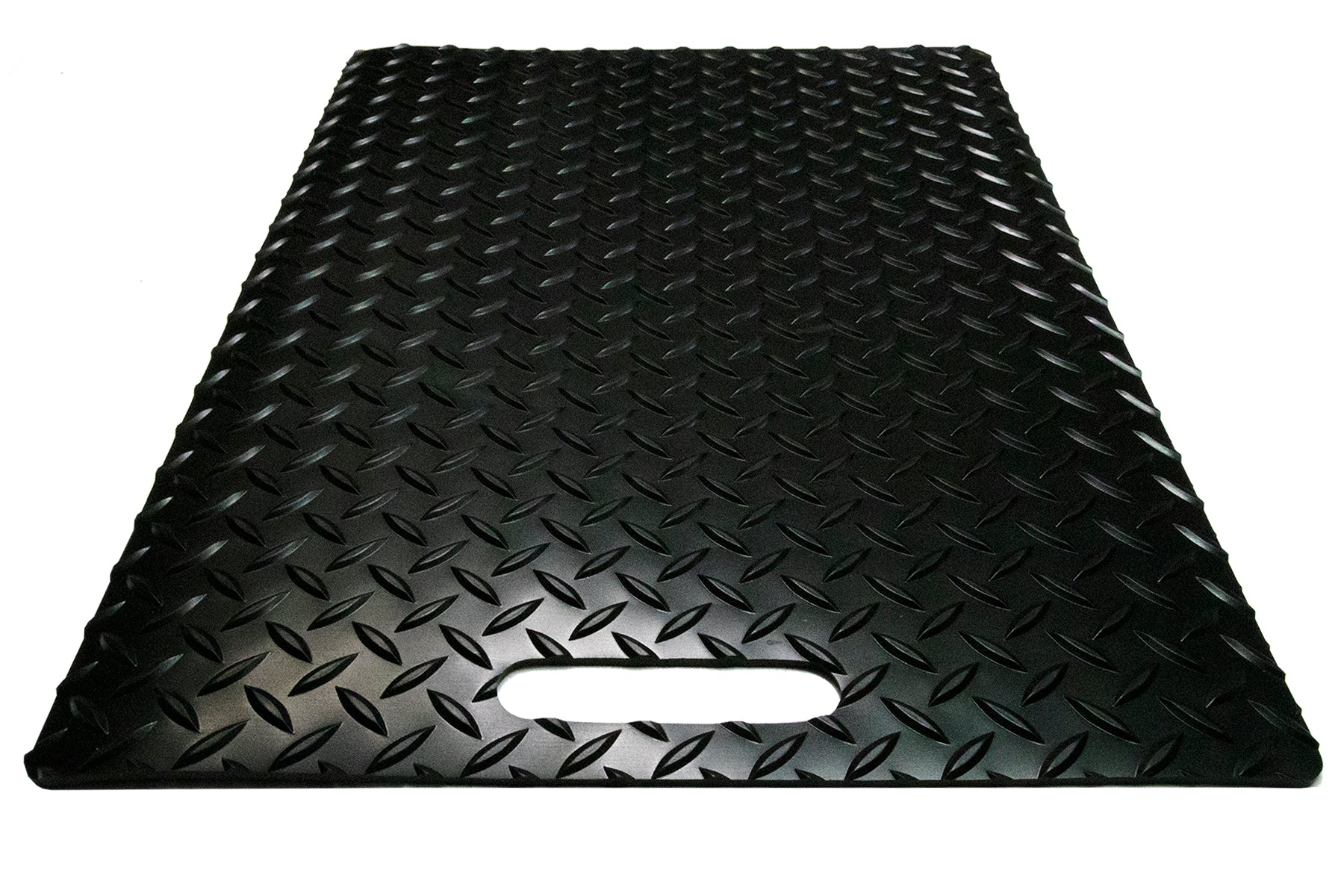

Heavy Duty Diamond Surface

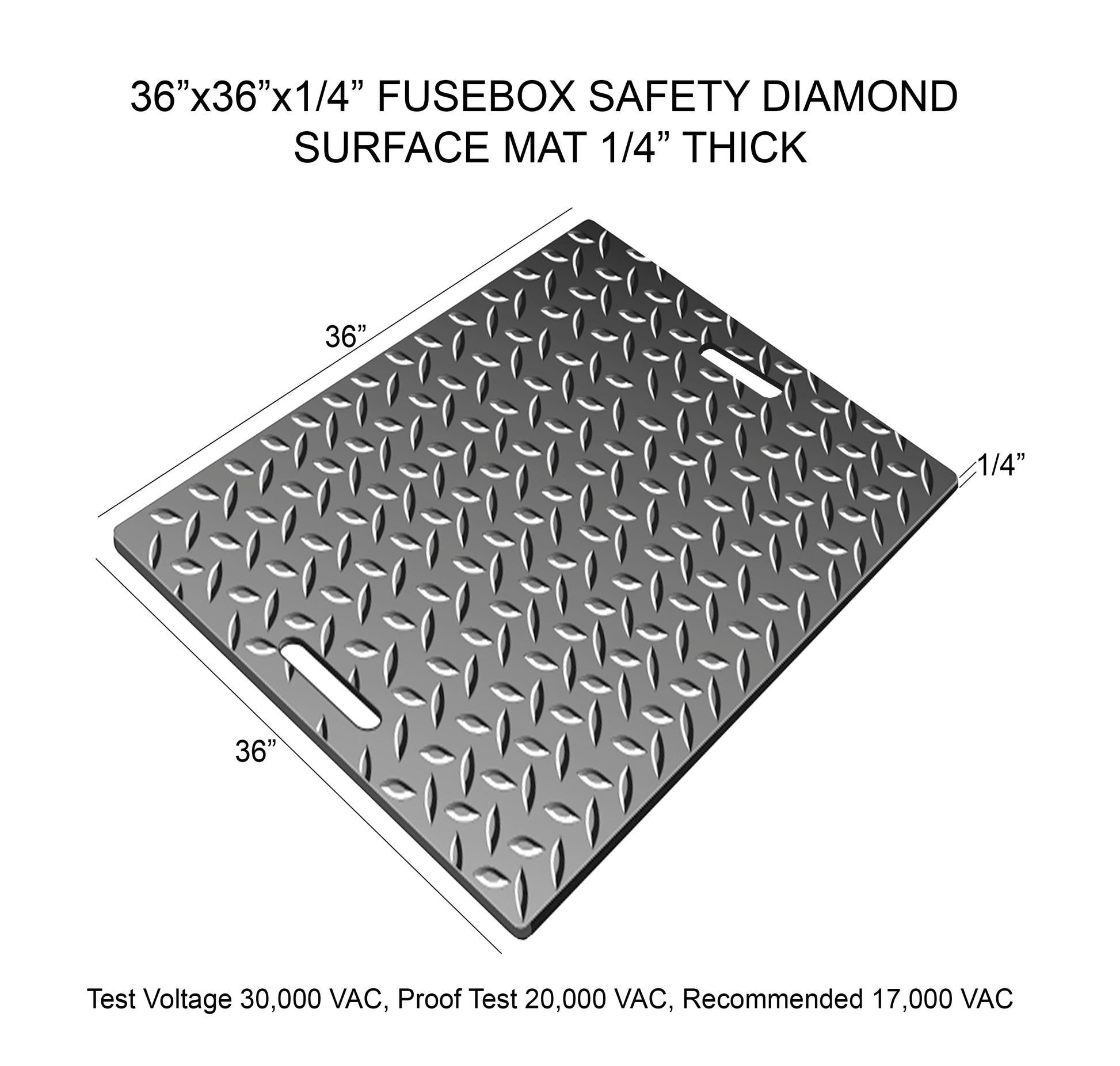

• Class 2, ¼" thick, Test Voltage 30,000 VAC, Proof Test 20,000 VAC, Recommended 17,000 VAC,

Sizes available; 2’X3', 3'X3'

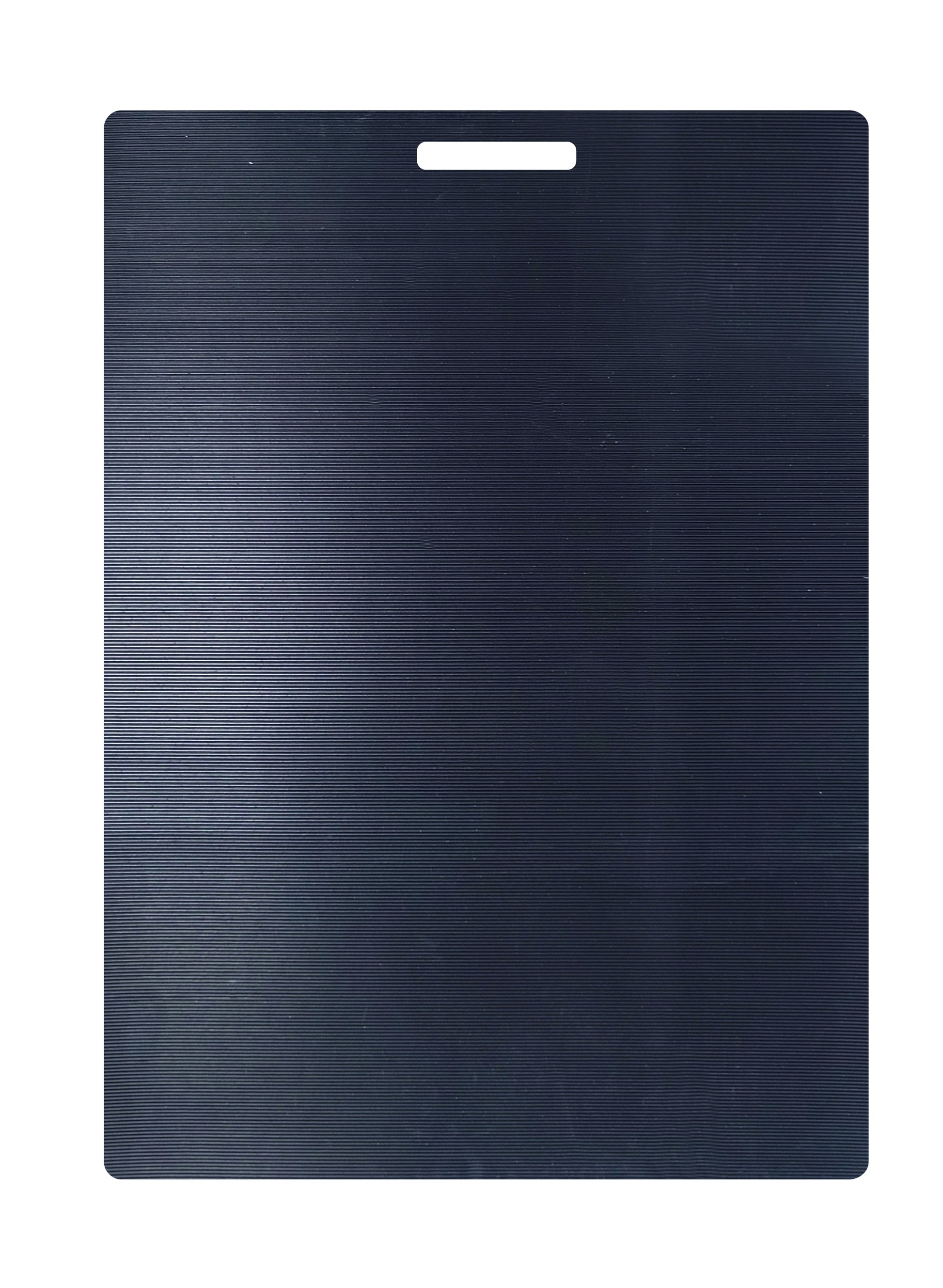

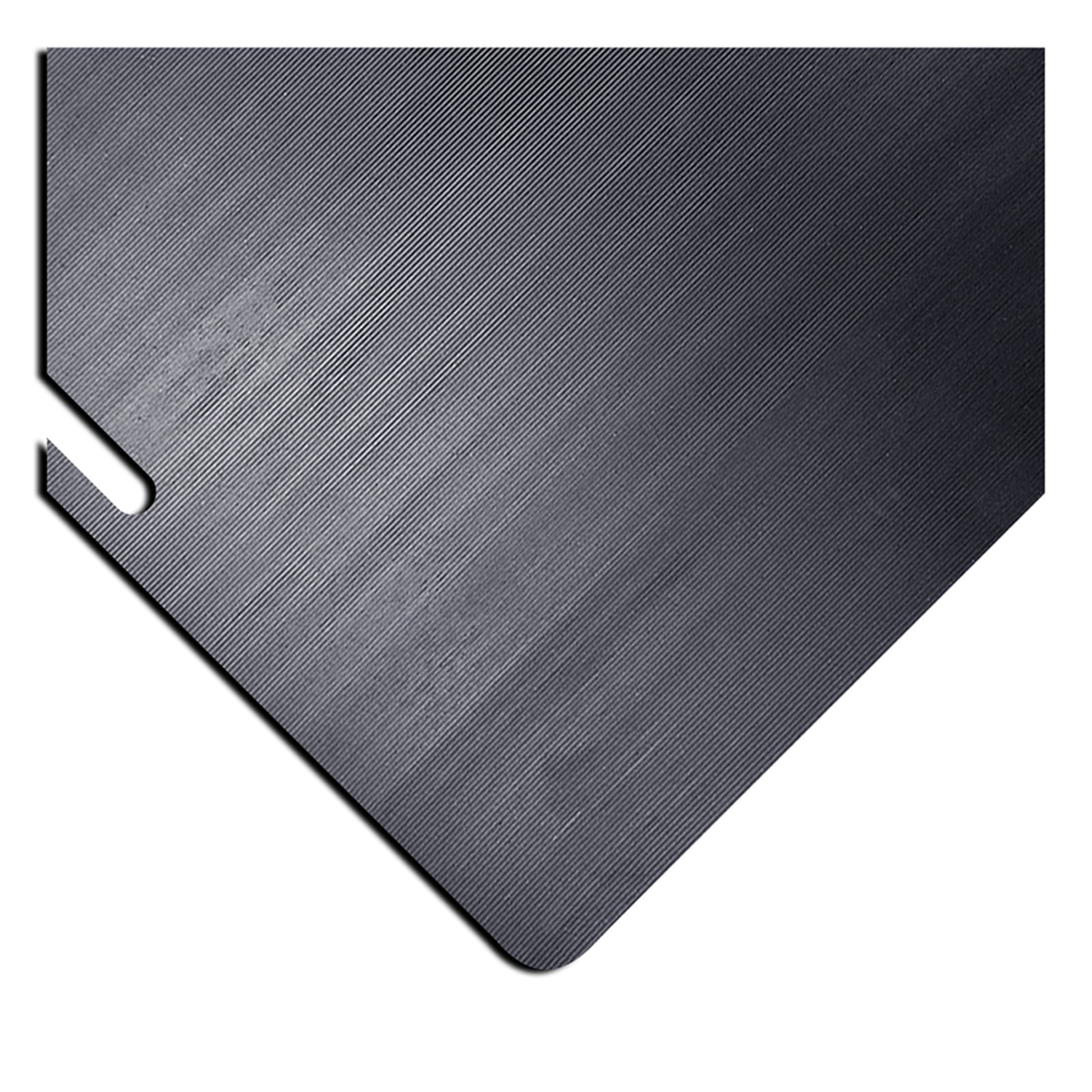

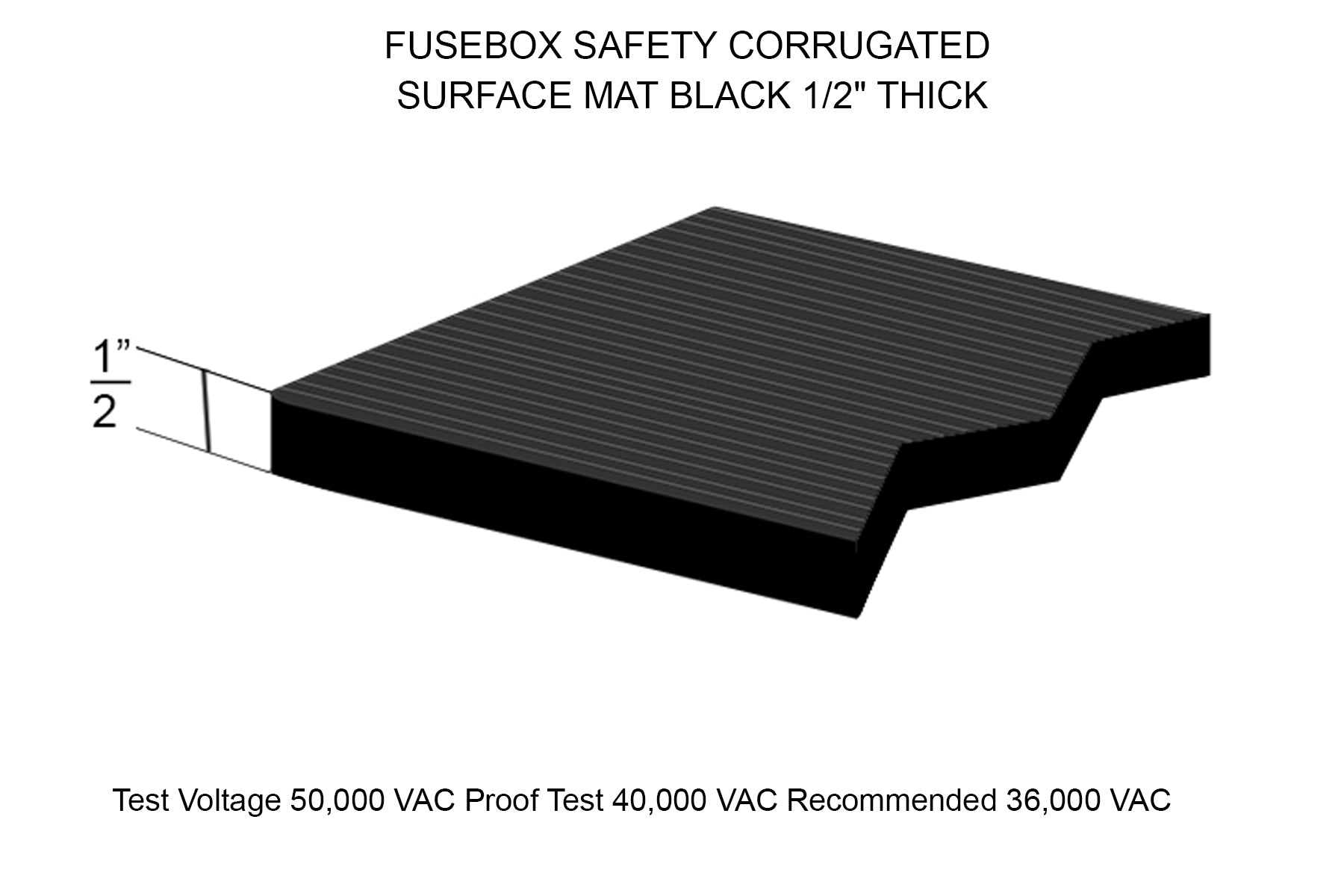

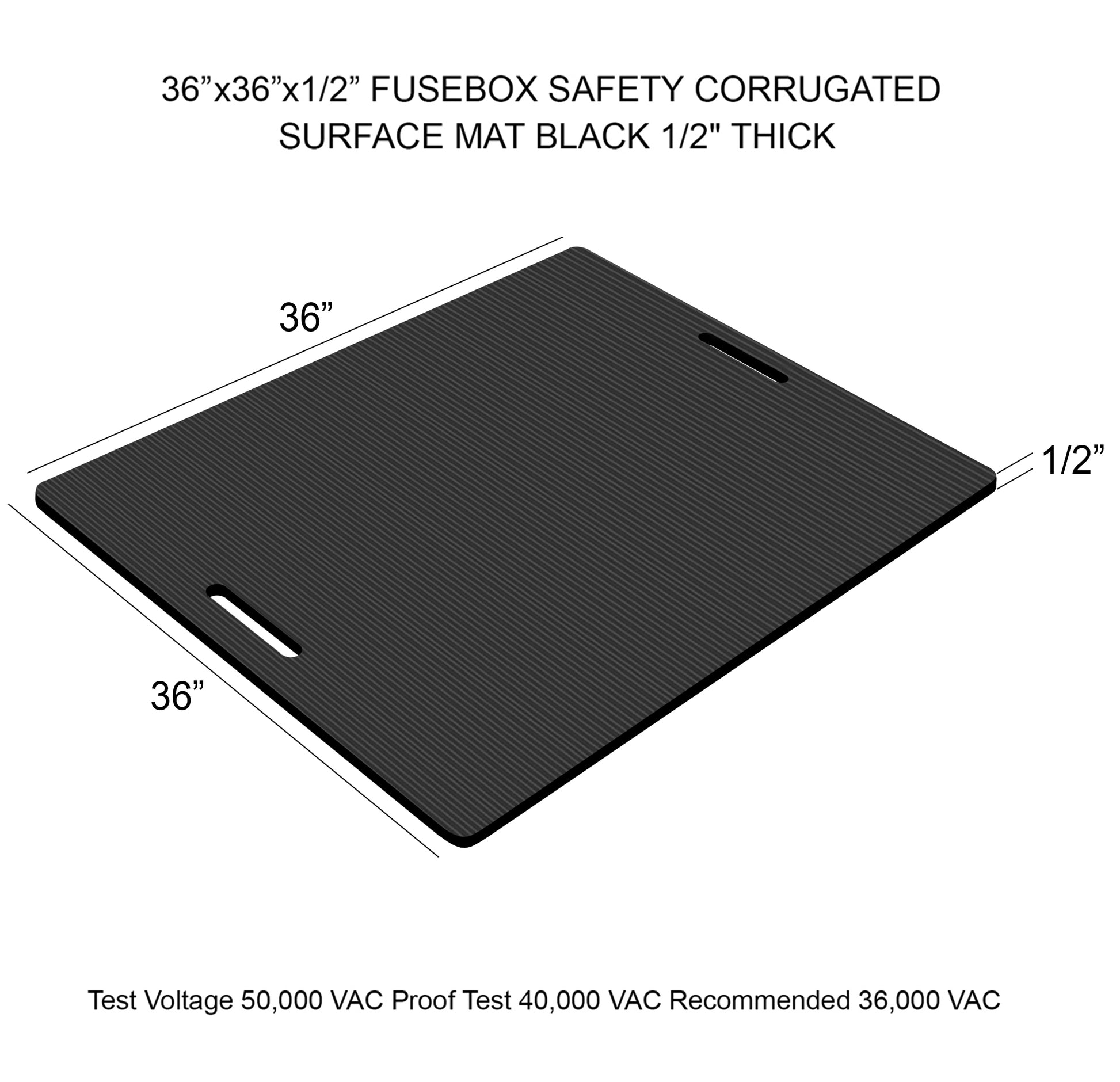

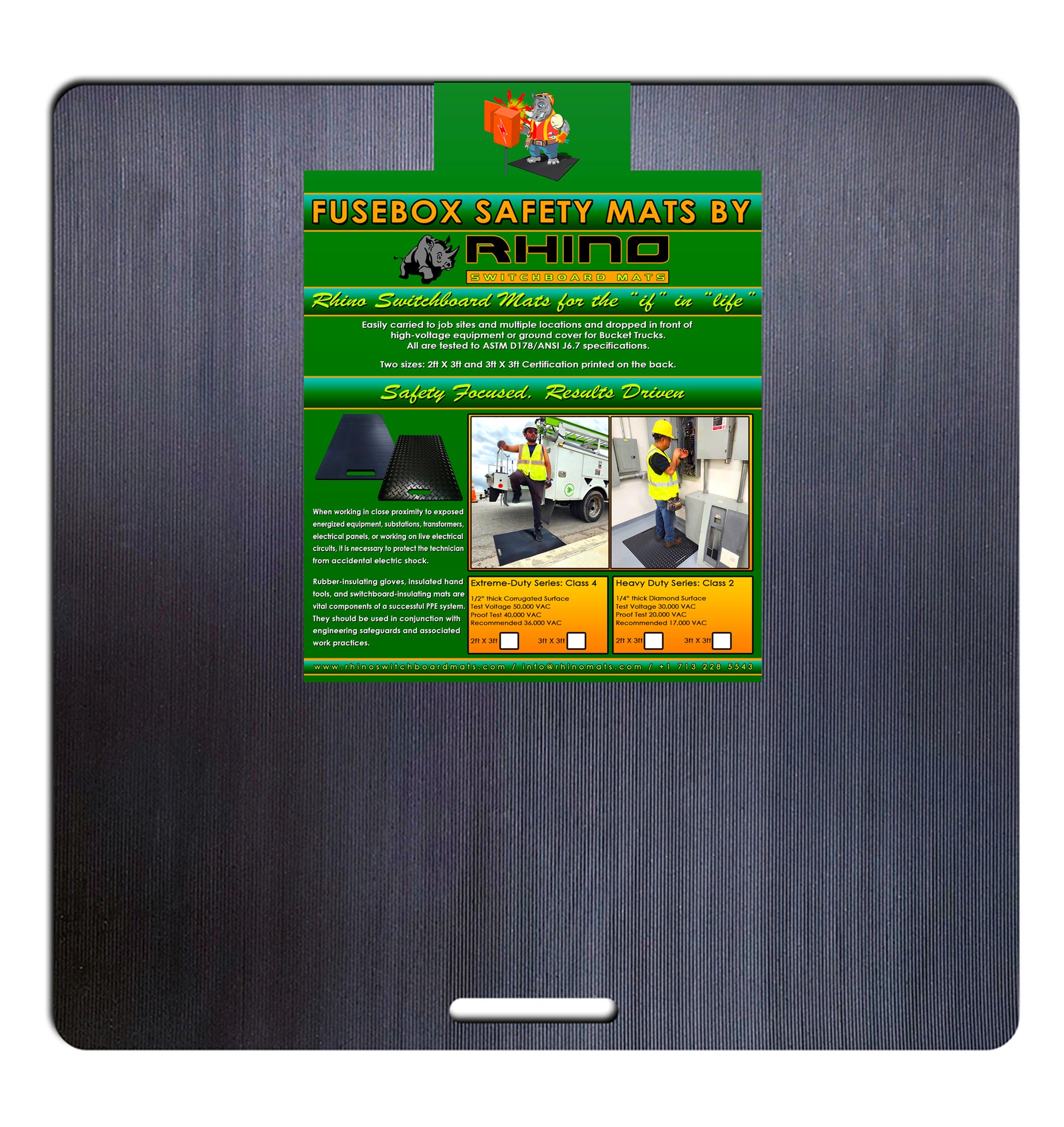

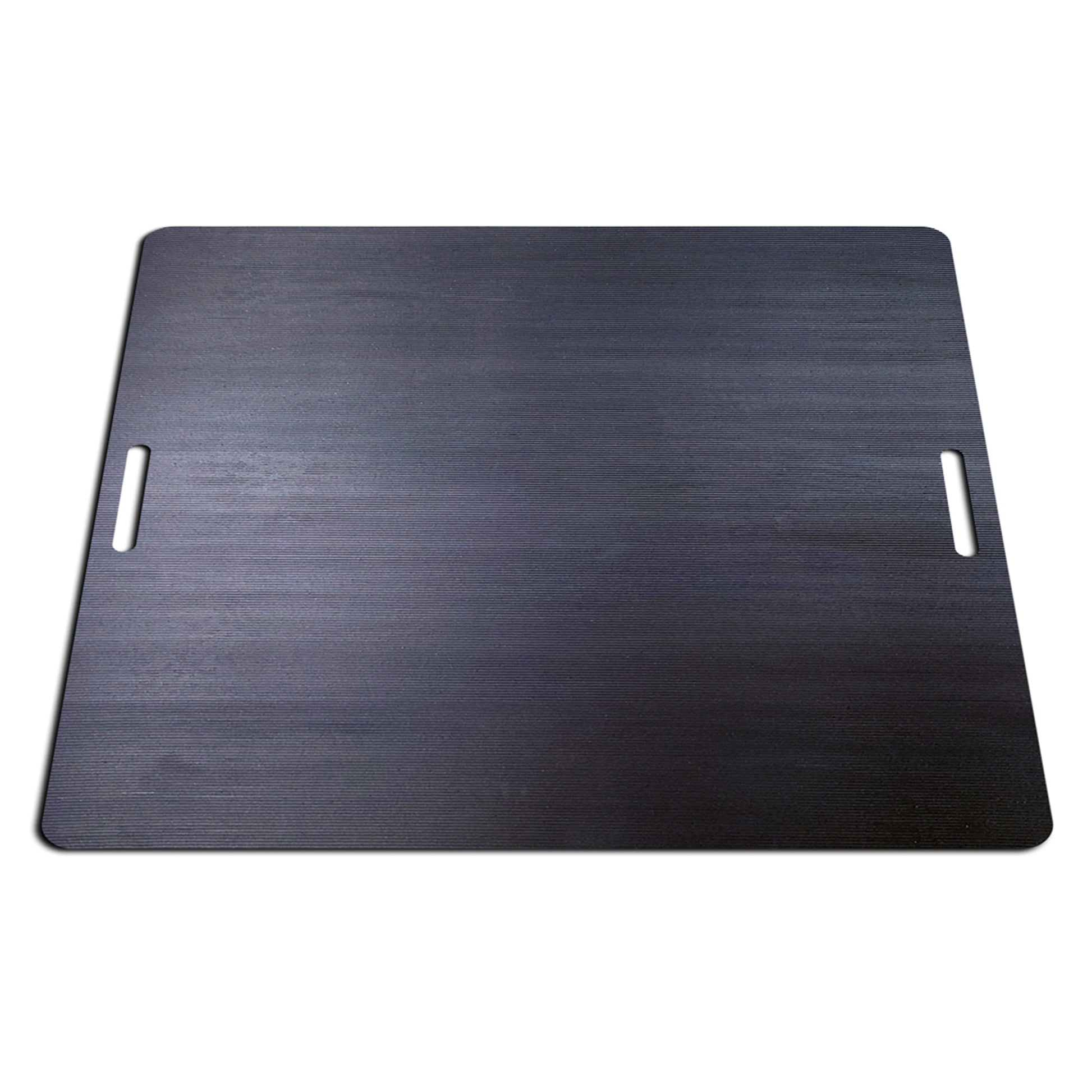

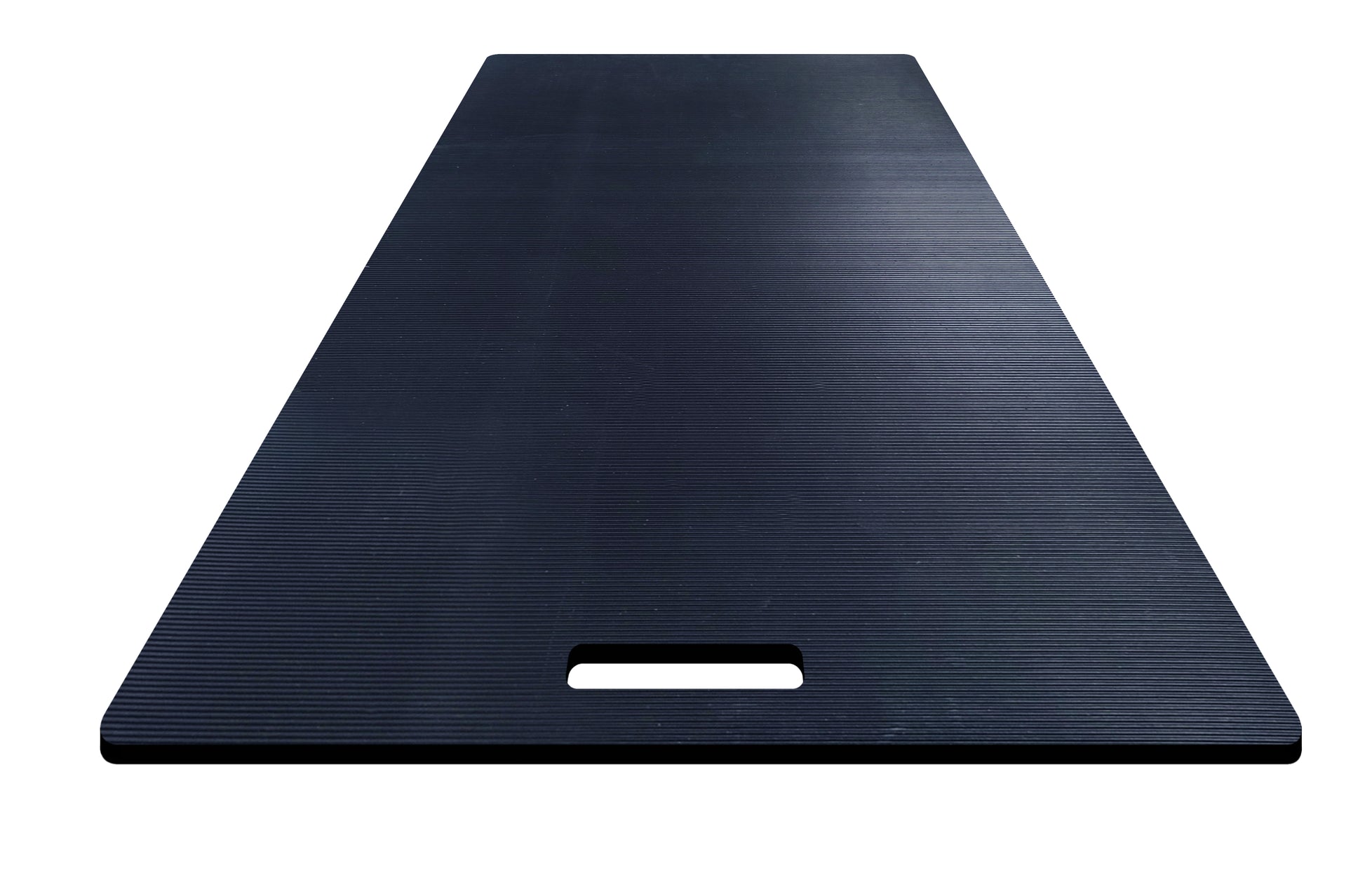

Extreme Duty Corrugated Surface

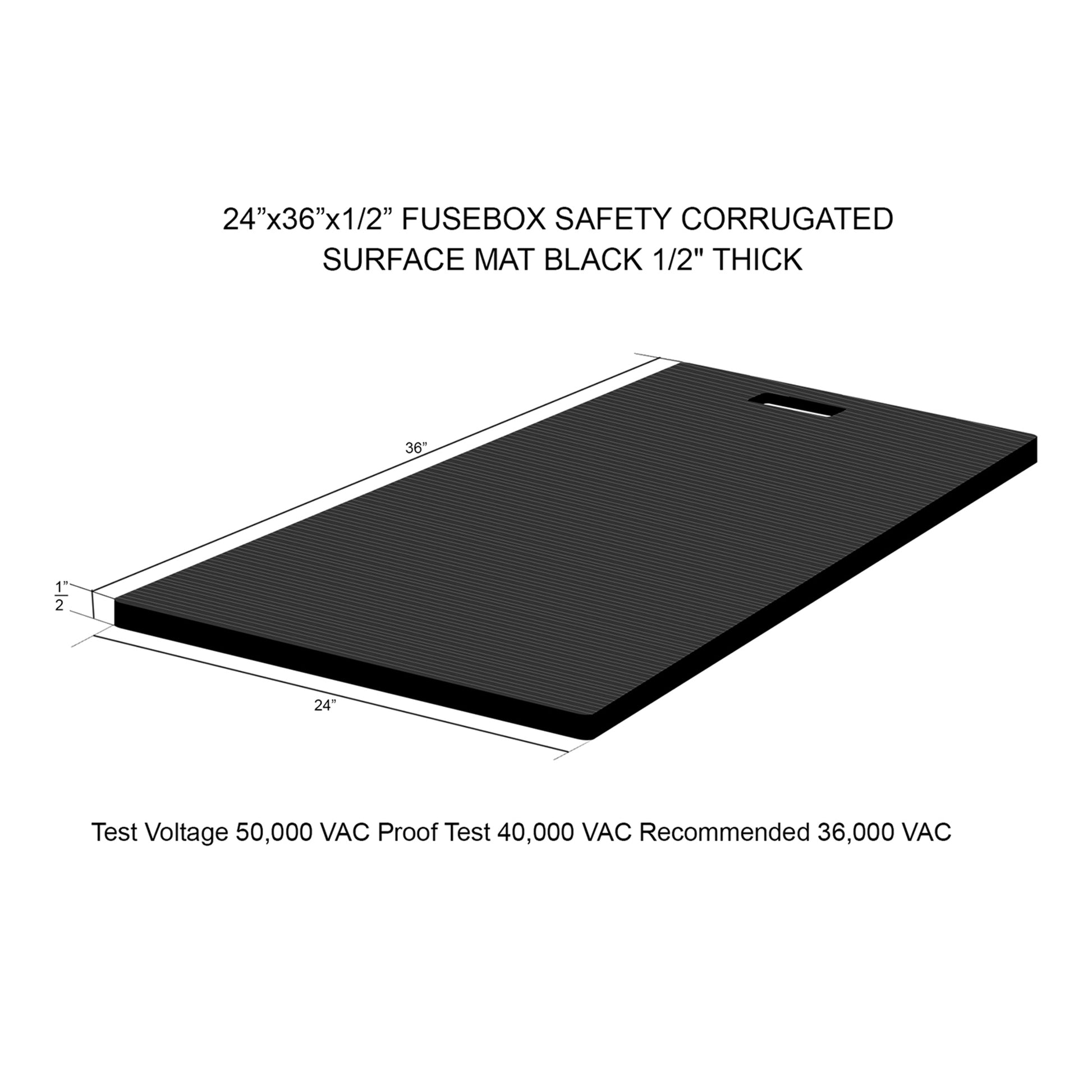

• Class 4, ½” thick, Test Voltage 50,000 VAC, Proof Test 40,000 VAC, Recommended 36,000 VAC.

 Sizes available; 2’X3’, 3’X3'
